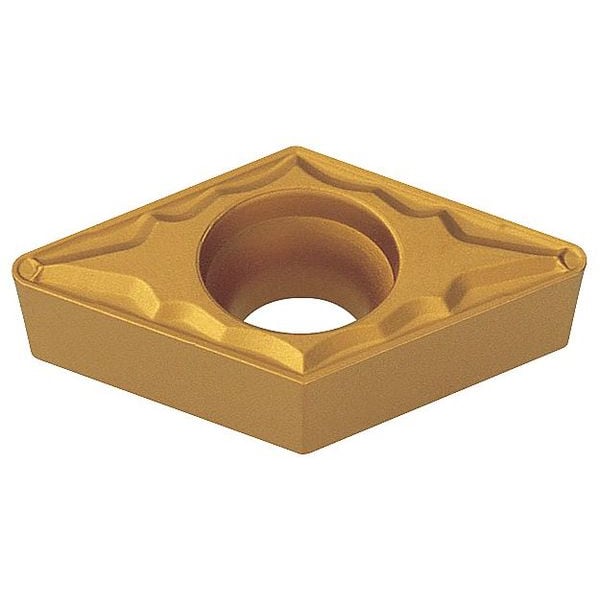

Carbide Insert, DCMT 32.51 UD21
| Item | Diamond Turning Insert |
|---|---|
| Coating | TiAlN |
| Insert Shape | Diamond |
| Mounting Style | Screw Lock |
| Cutting Direction | Neutral |
| Stainless (M) Compatibility | Yes |
| Insert Thickness | 0.156 in |
| Non Ferrous (N) Compatibility | No |
| Insert Style | DCMT |
| Insert Application | Finishing |
| ISO Number | 11T304 |
| Nose Radius | 0.015 in |
| Steel (P) Compatibility | No |
| Relief Angle | 7 deg |
| For Use With | SDUCR/L3, SDNCR3, SDXCR/L3 |
| Super Alloy (S) Compatibility | No |
| Application | Finishing |
| Hardened (H) Compatibility | No |
| ANSI Number | DCMT 32.51 UD21 |
| Rake | Positive |
| Insert Material | Carbide |
| Inscribed Circle | 3 |
| Style | DCMT |
| Grade | UD21 |
| Mounting Hole Dia. | 0.173 in |
| Cast Iron (K) Compatibility | Yes |
| Workpiece Compatibility | Cast Iron (K), Stainless (M) |
| Insert Size | 32.51 |
| No. of Edges | 2 |
| Chip-Breaker | Yes |
| Primary Material Application ISO Code | K |
| Thickness | 2.5 |
| Chip-Breaker Code | ZX3 |
| Number of Cutting Edges | 2 |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Manufacturer Grade | UD21 |
| Secondary Material Application ISO Code | M |
| Cutting Application | Boring, Turning |
| ANSI Code | DCMT 32.51 UD21 |
| Corner Radius | 1 |
| Finish - Machining | TiAlN |
| Measurement System | Fractional Inch |
| Shape | Rhombic |
| Material - Machining | Carbide |
| Clearance Angle | 7 deg |
| Secondary Material Application | Stainless Steel |
| Included Angle | 55 deg |
| Primary Material Application | Cast Iron |
| Package Quantity | 1 |
