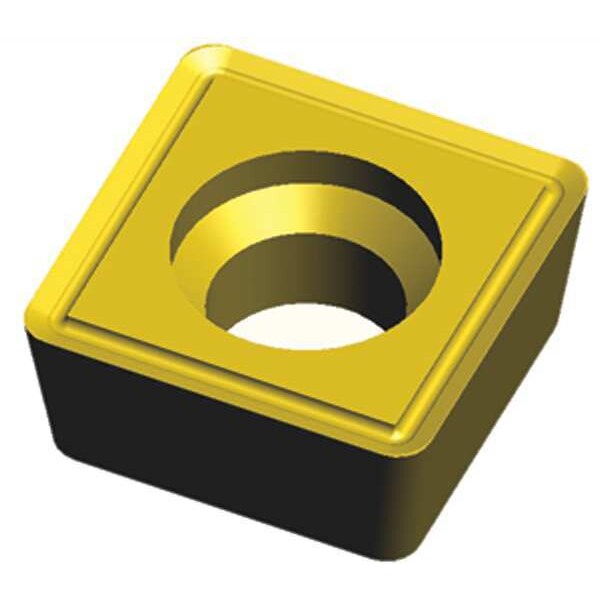

Carbide Insert, Square, SCMT 32.52 UD51
| Item | Square Turning Insert |
|---|---|
| Coating | Tin |
| Insert Shape | Square |
| Mounting Style | Screw Lock |
| Cutting Direction | Neutral |
| Application | Finishing |
| Grade | UD51 |
| Rake | Positive |
| Nose Radius | 0.031 in |
| Mounting Hole Dia. | 0.173 in |
| Steel (P) Compatibility | Yes |
| Hardened (H) Compatibility | No |
| No. of Edges | 4 |
| ISO Number | 09T308 |
| Workpiece Compatibility | Cast Iron (K), Stainless (M), Steel (P) |
| Relief Angle | 7 deg |
| Style | SCMT |
| For Use With | SSKCR3 |
| Stainless (M) Compatibility | Yes |
| Inscribed Circle | 3 |
| Insert Material | Carbide |
| Super Alloy (S) Compatibility | No |
| Cast Iron (K) Compatibility | Yes |
| ANSI Number | SCMT 32.52 UD51 |
| Insert Style | SCMT |
| Insert Application | Finishing |
| Insert Size | 32.52 |
| Non Ferrous (N) Compatibility | No |
| Insert Thickness | 0.156 in |
| Chip-Breaker | Yes |
| Cutting Application | Boring, Turning |
| Finish - Machining | TiN |
| Shape | Square |
| Secondary Material Application ISO Code | S, M, K |
| Clearance Angle | 7 deg |
| Thickness | 5/32 in |
| Corner Radius | 2 |
| Material - Machining | Carbide |
| Insert Holding Type | Hole |
| Primary Material Application ISO Code | P |
| Primary Material Application | Steel |
| Chip-Breaker Code | ZX3 |
| Included Angle | 90 deg |
| Manufacturer Grade | UD51 |
| Coating Process | CVD |
| Secondary Material Application | Cast Iron, Nickel, Stainless Steel, Titanium |
| ANSI Code | SCMT32.52 |
| Number of Cutting Edges | 4 |
| Measurement System | Fractional Inch |
| Package Quantity | 1 |
