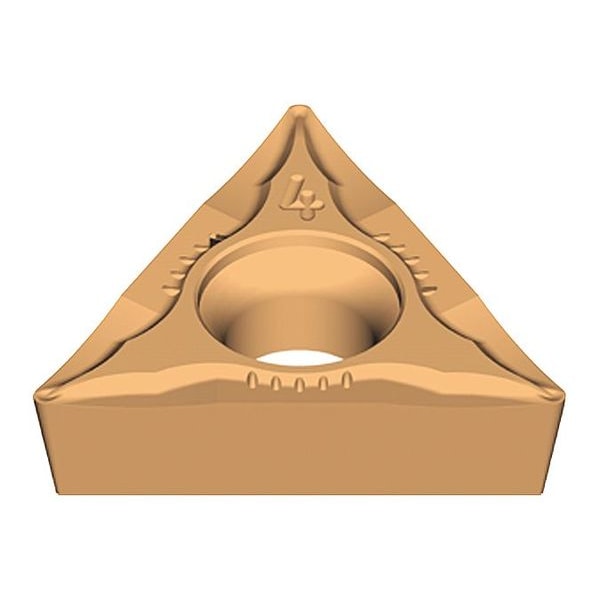

Carbide Insert, Triangle, TCMT 32.51 UD22
| Item | Triangle Turning Insert |
|---|---|
| Coating | Tin |
| Insert Shape | Triangle |
| Mounting Style | Screw Lock |
| Cutting Direction | Neutral |
| No. of Edges | 3 |
| Cast Iron (K) Compatibility | Yes |
| Super Alloy (S) Compatibility | No |
| Steel (P) Compatibility | No |
| Rake | Positive |
| Workpiece Compatibility | Cast Iron (K) |
| Mounting Hole Dia. | 0.173 in |
| Stainless (M) Compatibility | No |
| ISO Number | 16T304 |
| Style | TCMT |
| Insert Application | Finishing |
| Non Ferrous (N) Compatibility | No |
| For Use With | STUCR/L3, STFCR3 |
| Grade | UD22 |
| ANSI Number | TCMT 32.51 UD22 |
| Insert Material | Carbide |
| Relief Angle | 7 deg |
| Application | Finishing |
| Nose Radius | 0.015 in |
| Inscribed Circle | 3 |
| Insert Thickness | 0.156 in |
| Insert Style | TCMT |
| Insert Size | 32.51 |
| Hardened (H) Compatibility | No |
| Chip-Breaker | Yes |
| Secondary Material Application ISO Code | S |
| Primary Material Application ISO Code | K |
| ANSI Code | TCMT32.51 UD22 |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Cutting Application | Boring, Turning |
| Finish - Machining | TiN |
| Clearance Angle | 7 deg |
| Measurement System | Fractional Inch |
| Corner Radius | 1 |
| Number of Cutting Edges | 3 |
| Primary Material Application | Cast Iron |
| Included Angle | 60 deg |
| Thickness | 0.1562 in |
| Manufacturer Grade | UD22 |
| Secondary Material Application | Nickel, Titanium |
| Shape | Triangle |
| Material - Machining | Carbide |
| Package Quantity | 1 |
