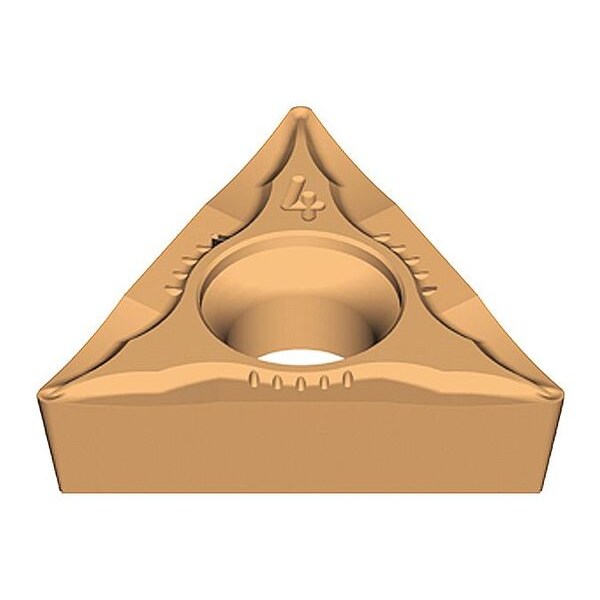

Carbide Insert, Triangle, TPMT 21.51 UD2
| Item | Triangle Turning Insert |
|---|---|
| Coating | Uncoated |
| Insert Shape | Triangle |
| Mounting Style | Screw Lock |
| Cutting Direction | Neutral |
| Insert Size | 21.51 |
| Style | TPMT |
| Nose Radius | 0.015 in |
| Cast Iron (K) Compatibility | No |
| Steel (P) Compatibility | No |
| Insert Material | Carbide |
| ANSI Number | TPMT 21.51 UD2 |
| Application | Finishing |
| Insert Thickness | 0.094 in |
| For Use With | STUPR/L2, STFPR2 |
| Insert Style | TPMT |
| Insert Application | Finishing |
| No. of Edges | 3 |
| Hardened (H) Compatibility | No |
| Stainless (M) Compatibility | No |
| Relief Angle | 11 deg |
| Inscribed Circle | 2 |
| Super Alloy (S) Compatibility | No |
| Rake | Positive |
| Non Ferrous (N) Compatibility | No |
| Grade | UD2 |
| Mounting Hole Dia. | 0.11 in |
| ISO Number | 110204 |
| Chip-Breaker | Yes |
| Secondary Material Application | Cast Iron, Ferrous Material |
| Secondary Material Application ISO Code | K, N |
| Thickness | 0.0937 in |
| Included Angle | 60 deg |
| Material - Machining | Carbide |
| Primary Material Application | All Materials |
| Manufacturer Grade | UD2 |
| Corner Radius | 1 |
| Measurement System | Fractional Inch |
| Cutting Application | Boring, Turning |
| Clearance Angle | 11 deg |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Number of Cutting Edges | 3 |
| Shape | Triangle |
| Finish - Machining | Bright |
| ANSI Code | TPMT21.51 UD2 |
| Package Quantity | 1 |
