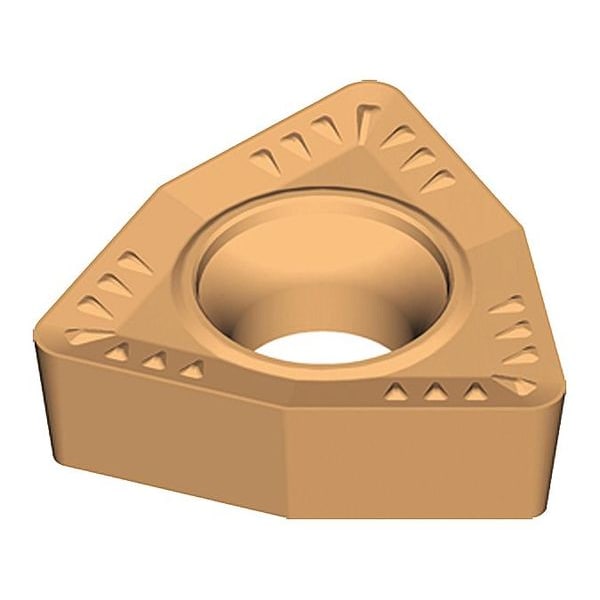

Carbide Insert, Trigon, 3, WCMT, 2, Carbide
| Item | Carbide Insert |
|---|---|
| Insert Shape | Trigon |
| Insert Style | WCMT |
| Inscribed Circle | 3 |
| Insert Size | 32.52 |
| Chip-Breaker | Yes |
| Grade | UD51 |
| Corner Radius | 2 |
| Insert Material | Carbide |
| Insert Application | Finishing |
| Rake | Positive |
| ISO Number | 06T308 |
| Nose Radius | 0.031 in |
| Insert Thickness | 0.156 in |
| Cutting Direction | Neutral |
| Non Ferrous (N) Compatibility | No |
| Cast Iron (K) Compatibility | Yes |
| Mounting Style | Screw Lock |
| Steel (P) Compatibility | Yes |
| Mounting Hole Dia. | 0.173 in |
| For Use With | SWLCR/L3 |
| Style | WCMT |
| Relief Angle | 7 Degrees |
| ANSI Number | WCMT 32.52 UD51 |
| Coating | TiN |
| Stainless (M) Compatibility | Yes |
| Hardened (H) Compatibility | No |
| Super Alloy (S) Compatibility | No |
| Workpiece Compatibility | Cast Iron (K), Stainless (M), Steel (P) |
| No. of Edges | 3 |
| Application | Finishing |
| Measurement System | Fractional Inch |
| Primary Material Application ISO Code | P |
| Cutting Application | Boring, Turning |
| Clearance Angle | 7 deg |
| Material - Machining | Carbide |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Secondary Material Application ISO Code | K, M, S |
| Primary Material Application | Steel |
| Manufacturer Grade | UD51 |
| Coating Process | CVD |
| Finish - Machining | TiN |
| ANSI Code | WCMT32.52 UD51 |
| Secondary Material Application | Cast Iron, Nickel, Stainless Steel, Titanium |
| Included Angle | 80 Degrees |
| Thickness | 2.5 |
| Shape | Trigon |
| Material | Carbide |
| Package Quantity | 1 |
