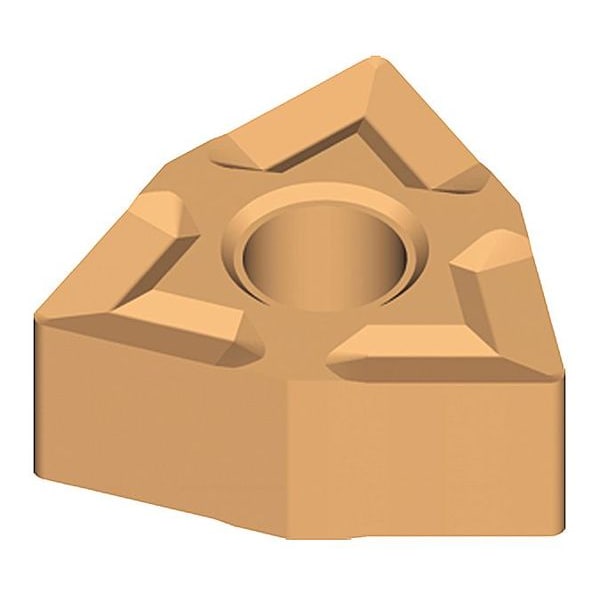

Carbide Insert, Trigon, 4, WNMG, 2, Carbide
| Item | Carbide Insert |
|---|---|
| Insert Shape | Trigon |
| Insert Style | WNMG |
| Inscribed Circle | 4 |
| Insert Size | 432 |
| Chip-Breaker | Yes |
| Grade | UD52 |
| Corner Radius | 2 |
| Insert Material | Carbide |
| Insert Application | Roughing |
| Rake | Negative |
| ISO Number | 080408 |
| Cutting Direction | Neutral |
| Cast Iron (K) Compatibility | No |
| No. of Edges | 3 |
| Workpiece Compatibility | Stainless (M), Steel (P) |
| Insert Thickness | 0.188 in |
| Steel (P) Compatibility | Yes |
| Hardened (H) Compatibility | No |
| Non Ferrous (N) Compatibility | No |
| Super Alloy (S) Compatibility | No |
| ANSI Number | WNMG 432 UD52 |
| Nose Radius | 0.031 in |
| Style | WNMG |
| Mounting Style | Clamp and Lock Pin |
| Application | Roughing |
| Mounting Hole Dia. | 0.203 in |
| For Use With | MWLNR/L4 |
| Stainless (M) Compatibility | Yes |
| Coating | TiAlN |
| Relief Angle | 0 Degrees |
| Manufacturer Grade | UD52 |
| Primary Material Application | Titanium, Nickel, Steel |
| Thickness | 3 |
| Finish - Machining | TiAlN |
| Measurement System | Fractional Inch |
| Secondary Material Application ISO Code | M |
| ANSI Code | WNMG432 UD52 |
| Shape | Trigon |
| Material - Machining | Carbide |
| Secondary Material Application | Stainless Steel |
| Included Angle | 80 Degrees |
| Cutting Application | Boring, Turning |
| Primary Material Application ISO Code | P, S |
| Clearance Angle | 0 deg |
| Insert Holding Type | Straight Hole |
| Material | Carbide |
| Package Quantity | 1 |
