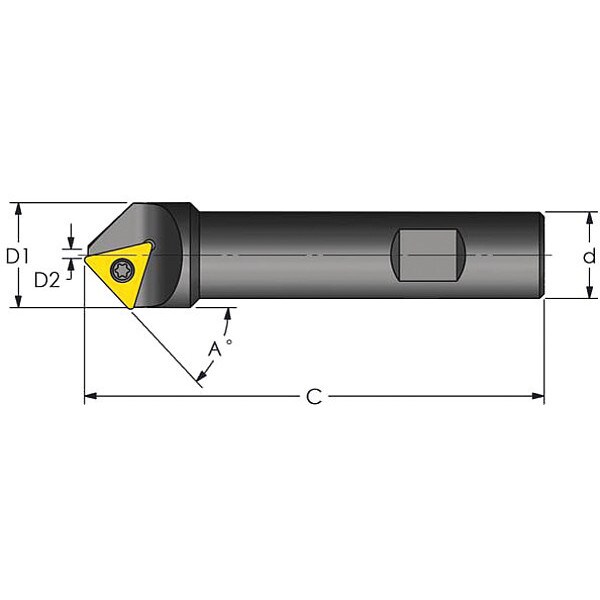

Chamfer Mill, 0.750" x 4.000" Size
| Item | Indexable Boring Bar |
|---|---|
| Overall Length | 4 in |
| Shank Dia. | 3/4 in |
| Standards | ANSI, ISO |
| Insert Shape | Triangle |
| Cutting Direction | Right Hand |
| Insert Size | 4 |
| Rake | Positive |
| Shank Shape | Square |
| Coolant Fed | Non-Coolant Through |
| Insert Holding Type | Screw |
| ANSI Code | 32.52 |
| Insert Style | TCMT |
| Cutting Application | Chamfer |
| Seat Size | 4 |
| Compatible Hardware | Mfr. No. MTS-35, Mfr. No. TCMT 32.52 |
| Cutting Height | 1-1/4 in |
| Insert Inscribed Circle | 3/8 in |
| Shank Material | Steel |
| Toolholder Style | NSR 16-4D |
| Number of Coolant Holes | Not Applicable |
| Insert Cutting Edge Length | 16.50mm |
| ISO Number | 16T308 |
| Number of Inserts | 1 |
| Side Cutting Edge Angle | 45 Degrees |
| Shank Width | 1" |
| Head Length | 1" |
| Shank Height | 1" |
| Package Quantity | 1 |
