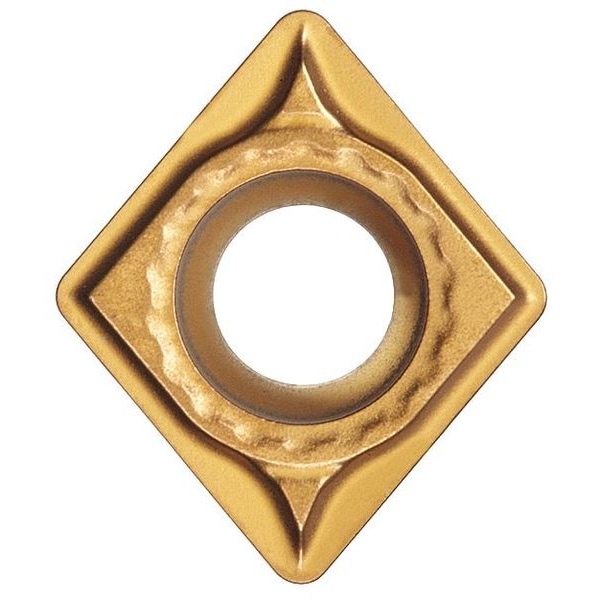

Diamond Turning Insert, Diamond, 1.8, CPMT, .5, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CPMT |
| Inscribed Circle | 1.8 |
| Insert Size | 1.81.20.5 |
| Chip-Breaker | Yes |
| Grade | UD2 |
| Corner Radius | .5 |
| Insert Material | Carbide |
| Insert Application | Finishing |
| Rake | Positive |
| ISO Number | 050202 |
| Relief Angle | 11 Degrees |
| Hardened (H) Compatibility | No |
| No. of Edges | 2 |
| Coating | Uncoated |
| Mounting Hole Dia. | 0.098 in |
| Non Ferrous (N) Compatibility | Yes |
| Cutting Direction | Neutral |
| For Use With | SCLPR/L1.8 |
| Cast Iron (K) Compatibility | No |
| Insert Thickness | 0.078 in |
| Style | CPMT |
| Application | Finishing |
| Super Alloy (S) Compatibility | No |
| Stainless (M) Compatibility | No |
| Nose Radius | 0.008 in |
| ANSI Number | CPMT 1.81.20.5 UD2 |
| Mounting Style | Screw Lock |
| Steel (P) Compatibility | No |
| Clearance Angle | 11 deg |
| Finish - Machining | Bright |
| Number of Cutting Edges | 2 |
| Included Angle | 80 Degrees |
| Material - Machining | Carbide |
| Thickness | 1.5 |
| Secondary Material Application ISO Code | K, N |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Secondary Material Application | Cast Iron, Ferrous Material |
| Shape | Rhombic |
| Chip-Breaker Code | LX6 |
| Primary Material Application | All Materials |
| Manufacturer Grade | UD2 |
| Cutting Application | Boring, Turning |
| ANSI Code | CPMT 1.81.205 UD2 |
| Measurement System | Fractional Inch |
| Material | Carbide |
| Package Quantity | 1 |
