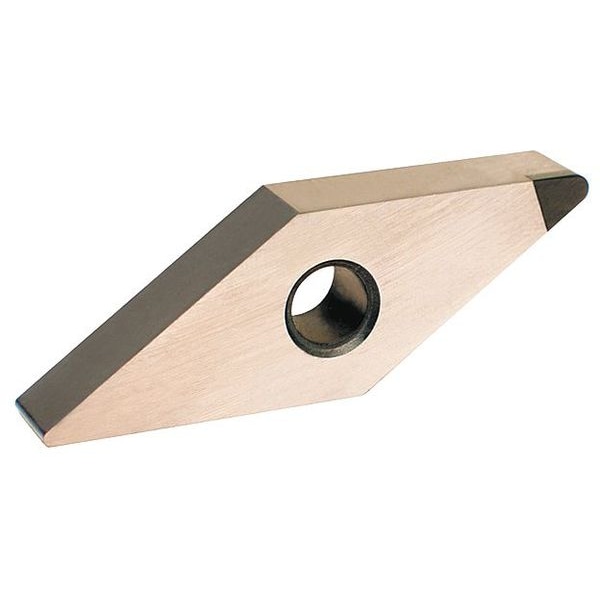

Diamond Turning Insert, Diamond, 3, VNGA, 1, CBN
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | VNGA |
| Inscribed Circle | 3 |
| Insert Size | 331 |
| Chip-Breaker | No |
| Grade | UD2CBN |
| Corner Radius | 1 |
| Insert Material | CBN |
| Insert Application | Roughing |
| Rake | Negative |
| ISO Number | 160404 |
| Cast Iron (K) Compatibility | Yes |
| Mounting Style | Clamp and Lock Pin |
| Steel (P) Compatibility | No |
| Super Alloy (S) Compatibility | No |
| Coating | PCBN |
| Workpiece Compatibility | Cast Iron (K), Hardened (H) |
| No. of Edges | 2 |
| For Use With | MVUNR/L3, MVXNR/L3 |
| ANSI Number | VNGA 331-2 UD2CBN |
| Hardened (H) Compatibility | Yes |
| Style | VNGA |
| Application | Roughing |
| Mounting Hole Dia. | 0.15 in |
| Cutting Direction | Neutral |
| Insert Thickness | 0.188 in |
| Stainless (M) Compatibility | No |
| Non Ferrous (N) Compatibility | No |
| Relief Angle | 0 Degrees |
| Nose Radius | 0.015 in |
| Measurement System | Fractional Inch |
| Primary Material Application ISO Code | K, H |
| ANSI Code | VNGA331-2 |
| Thickness | 3 |
| Clearance Angle | 0 deg |
| Included Angle | 35 Degrees |
| Shape | Rhombic |
| Manufacturer Grade | UD2CBN |
| Cutting Application | Boring, Turning |
| Insert Holding Type | Straight Hole |
| Primary Material Application | Cast Iron, Hardened Steel |
| Number of Cutting Edges | 2 |
| Material - Machining | CBN |
| Material | CBN |
| Package Quantity | 1 |
