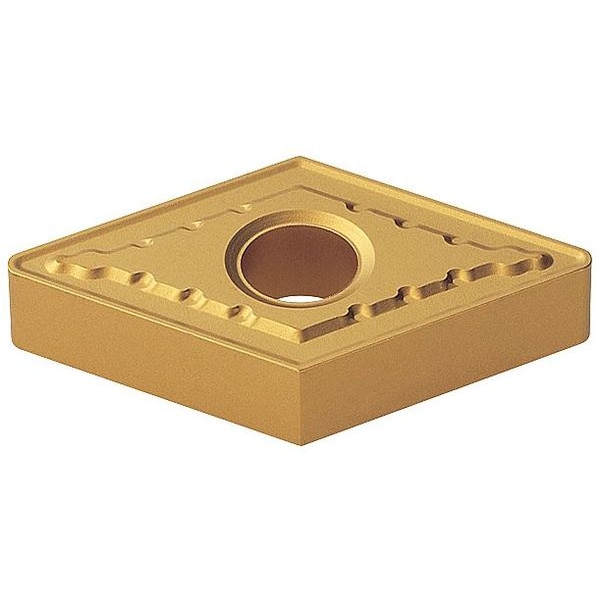

Diamond Turning Insert, Diamond, 4, DNMG, 1, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | DNMG |
| Inscribed Circle | 4 |
| Insert Size | 431 |
| Chip-Breaker | Yes |
| Grade | UD21 |
| Corner Radius | 1 |
| Insert Material | Carbide |
| Insert Application | Roughing |
| Rake | Negative |
| ISO Number | 150604 |
| Workpiece Compatibility | Cast Iron (K), Stainless (M) |
| Hardened (H) Compatibility | No |
| Cast Iron (K) Compatibility | Yes |
| Stainless (M) Compatibility | Yes |
| Insert Thickness | 0.188 in |
| Steel (P) Compatibility | No |
| Non Ferrous (N) Compatibility | No |
| Mounting Hole Dia. | 0.203 in |
| Coating | TiAlN |
| Nose Radius | 0.015 in |
| Application | Roughing |
| Style | DNMG |
| Cutting Direction | Neutral |
| ANSI Number | DNMG 431 UD21 |
| For Use With | MDUNR/L4, MDQNR/L4, DDUNR/L4 |
| Mounting Style | Clamp and Lock Pin |
| Super Alloy (S) Compatibility | No |
| Relief Angle | 0 Degrees |
| No. of Edges | 2 |
| Manufacturer Grade | UD21 |
| Measurement System | Fractional Inch |
| Secondary Material Application ISO Code | M |
| Included Angle | 55 Degrees |
| ANSI Code | DNMG 431 UD21 |
| Finish - Machining | TiAlN |
| Chip-Breaker Code | ZX2 |
| Shape | Rhombic |
| Thickness | 3 |
| Material - Machining | Carbide |
| Clearance Angle | 0 deg |
| Cutting Application | Boring, Turning |
| Number of Cutting Edges | 2 |
| Secondary Material Application | Stainless Steel |
| Primary Material Application | Cast Iron |
| Primary Material Application ISO Code | K |
| Insert Holding Type | Straight Hole |
| Material | Carbide |
| Package Quantity | 1 |
