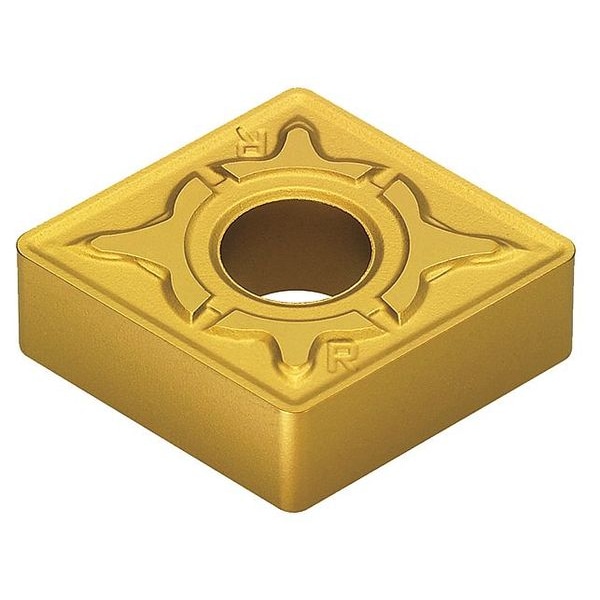

Diamond Turning Insert, Diamond, 6, CNMG, 3, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CNMG |
| Inscribed Circle | 6 |
| Insert Size | 643 |
| Chip-Breaker | Yes |
| Grade | UD51 |
| Corner Radius | 3 |
| Insert Material | Carbide |
| Insert Application | Roughing |
| Rake | Negative |
| ISO Number | 190612 |
| Steel (P) Compatibility | Yes |
| Super Alloy (S) Compatibility | No |
| For Use With | MCLNR/L6 |
| Cutting Direction | Neutral |
| Relief Angle | 0 Degrees |
| Non Ferrous (N) Compatibility | No |
| Stainless (M) Compatibility | Yes |
| Cast Iron (K) Compatibility | Yes |
| Mounting Hole Dia. | 0.312 in |
| Insert Thickness | 1/4 in |
| Hardened (H) Compatibility | No |
| Workpiece Compatibility | Cast Iron (K), Stainless (M), Steel (P) |
| Application | Roughing |
| Nose Radius | 0.046 in |
| Style | CNMG |
| No. of Edges | 2 |
| ANSI Number | CNMG 643 UD51 |
| Mounting Style | Clamp and Lock Pin |
| Coating | TiN |
| Measurement System | Fractional Inch |
| Chip-Breaker Code | ZP1 |
| Material - Machining | Carbide |
| Secondary Material Application | Cast Iron, Nickel, Stainless Steel, Titanium |
| Primary Material Application | Steel |
| Manufacturer Grade | UD51 |
| Thickness | 4 |
| Finish - Machining | TiN |
| Cutting Application | Boring, Turning |
| ANSI Code | CNMG 643 UD51 |
| Number of Cutting Edges | 2 |
| Clearance Angle | 0 deg |
| Secondary Material Application ISO Code | K, M, S |
| Primary Material Application ISO Code | P |
| Included Angle | 80 Degrees |
| Insert Holding Type | Straight Hole |
| Shape | Rhombic |
| Material | Carbide |
| Package Quantity | 1 |
