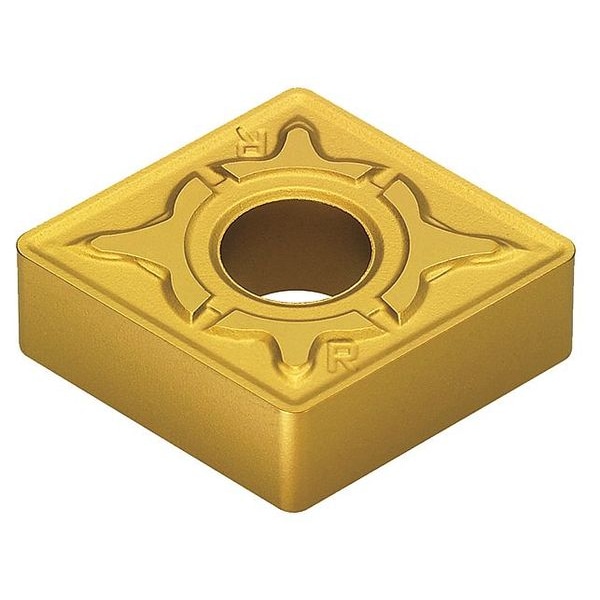

Diamond Turning Insert, Diamond, 6, CNMG, 3, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CNMG |
| Inscribed Circle | 6 |
| Insert Size | 643 |
| Chip-Breaker | Yes |
| Grade | UD52 |
| Corner Radius | 3 |
| Insert Material | Carbide |
| Insert Application | Roughing |
| Rake | Negative |
| ISO Number | 190612 |
| ANSI Number | CNMG 643 UD52 |
| Style | CNMG |
| Hardened (H) Compatibility | No |
| Cast Iron (K) Compatibility | No |
| Mounting Hole Dia. | 0.312 in |
| Super Alloy (S) Compatibility | No |
| No. of Edges | 2 |
| Relief Angle | 0 Degrees |
| Non Ferrous (N) Compatibility | No |
| Mounting Style | Clamp and Lock Pin |
| For Use With | MCLNR/L6 |
| Insert Thickness | 1/4 in |
| Coating | TiAlN |
| Steel (P) Compatibility | Yes |
| Cutting Direction | Neutral |
| Workpiece Compatibility | Stainless (M), Steel (P) |
| Stainless (M) Compatibility | Yes |
| Nose Radius | 0.046 in |
| Application | Roughing |
| Secondary Material Application | Stainless Steel |
| Material - Machining | Carbide |
| Manufacturer Grade | UD52 |
| Finish - Machining | TiAlN |
| ANSI Code | CNMG 643 UD52 |
| Cutting Application | Boring, Turning |
| Measurement System | Fractional Inch |
| Primary Material Application ISO Code | P, S |
| Thickness | 4 |
| Chip-Breaker Code | ZP1 |
| Secondary Material Application ISO Code | M |
| Shape | Rhombic |
| Insert Holding Type | Straight Hole |
| Included Angle | 80 Degrees |
| Clearance Angle | 0 deg |
| Number of Cutting Edges | 2 |
| Primary Material Application | Titanium, Nickel, Steel |
| Material | Carbide |
| Package Quantity | 1 |
