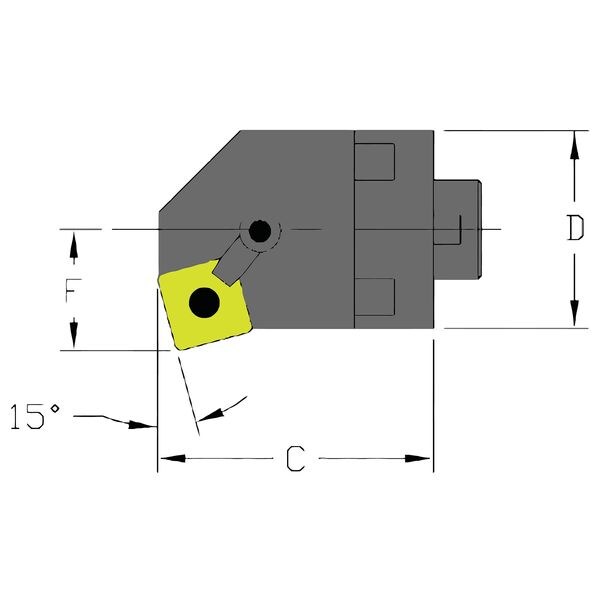

Indexable Cutting Head Unit, MH24 MSKNR4-CFT, 1.7440 in L, Steel, Square Insert Shape
| Item | Indexable Cutting Head Unit |
|---|---|
| Overall Length | 1.744 in |
| Shank Material | Steel |
| Insert Shape | Square |
| ANSI Code | MH24 MSKNR4-CFT |
| Rake | Negative |
| ANSI Number | MH24 MSKNR4-CFT |
| Left/Right Hand | Right Hand |
| Lead Angle | 15 Degrees |
| Bar Dia. | 1-1/2 in |
| Cutting Edge Type | 15 Degrees |
| Insert Thickness | 3/16 in |
| For Use With | SNMG 432 |
| Inscribed Circle | 1/2 in |
| Mounting Style | Clamp And Lock Pin |
| Type | Turning |
| Min. Bore | 1.76 in |
| Style | Chatter-Free |
| Insert Size | 432 |
| Cutting Direction | Right Hand |
| Coolant Fed | Coolant Through |
| Min. Bore Dia. | 1.76 in |
| Toolholder Style | MSKN |
| Insert Clearance Angle | 0 deg |
| Insert Style | SNMG |
| Center to Cutting Tip | 0.89 in |
| Side Cutting Edge Angle | 15 deg |
| Cutting Application | Boring |
| Insert Holding Type | Clamp, Lock Pin |
| Compatible Hardware | Clamp CL-20, Clamp Screw XNS-47, Lock Pin NL-46, Shim ISSN-433 |
| Hardware Required | Clamp CL-20, Clamp Screw XNS-47, Lock Pin NL-46, Shim ISSN-433 |
| Insert Inscribed Circle | 1/2 in |
| Connection Size | MH24 |
| Package Quantity | 1 |
