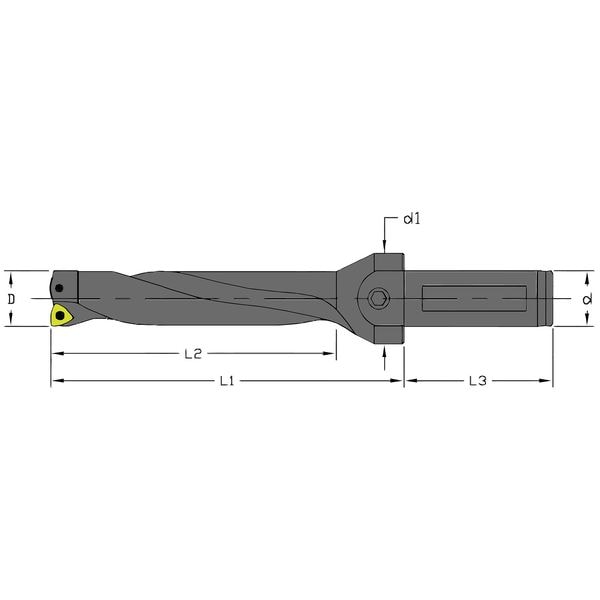

Indexable Drill, UD-0906-4D-075
| Item | Indexable Insert Drill |
|---|---|
| Shank Type | Straight |
| Shank Dia. | 3/4 in |
| Overall Length | 6.763 in |
| Cutting Direction | Right Hand |
| Flute Length | 3.855 in |
| Diameter | 0.906 in |
| Number of Inserts Required | 2 |
| Shank Length | 2 in |
| ANSI Number | UD-0906-4D-075 |
| Series | UD |
| For Use With | WCMX 21.52 |
| Ratio | 4" x Dia. |
| Inscribed Circle | 09 |
| Drilling Depth | 3.855 in |
| ISO Number | UD-0906-4D-075 |
| Depth x Dia. Ratio | 4 xD |
| Central Insert Style | WCMX |
| Coolant Fed | Coolant Through |
| Flanged Shank | Yes |
| Number of Inserts | 2 |
| ANSI Code | UD-0906-4D-075 |
| Spiral Direction | Right Hand |
| Max. Drill Dia. | 29/32 in |
| Max. Drilling Depth | 3.855 in |
| Flute Type | Spiral |
| Package Quantity | 1 |
