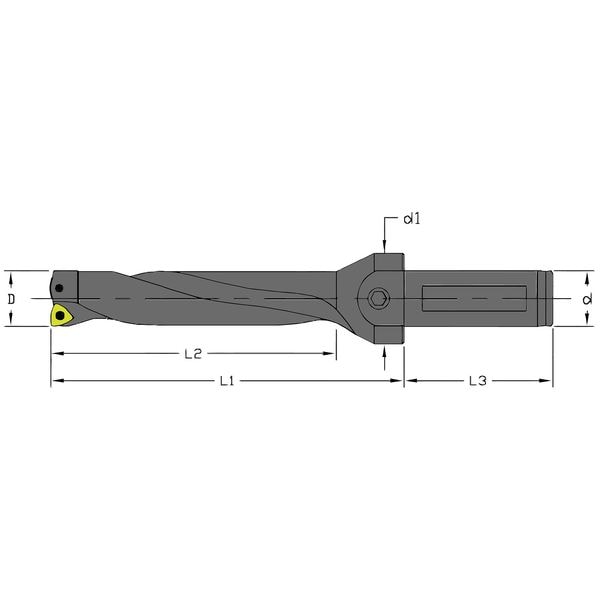

Indexable Drill, UD-1219-4D-100
| Item | Indexable Insert Drill |
|---|---|
| Shank Type | Straight |
| Shank Dia. | 1 in |
| Overall Length | 8.06 in |
| Cutting Direction | Right Hand |
| Flute Length | 4.864 in |
| Inscribed Circle | 12 |
| Drilling Depth | 4.864 in |
| Diameter | 1.219 in |
| Number of Inserts Required | 2 |
| Shank Length | 2-3/8 in |
| For Use With | WCMX 2.522 |
| ANSI Number | UD-1219-4D-100 |
| Ratio | 4" x Dia. |
| Series | UD |
| Depth x Dia. Ratio | 4 xD |
| ISO Number | UD-1219-4D-100 |
| Max. Drill Dia. | 1-7/32 in |
| Central Insert Style | WCMX |
| Coolant Fed | Coolant Through |
| Number of Inserts | 2 |
| ANSI Code | UD-1219-4D-100 |
| Max. Drilling Depth | 4.864 in |
| Flanged Shank | Yes |
| Flute Type | Spiral |
| Spiral Direction | Right Hand |
| Package Quantity | 1 |
