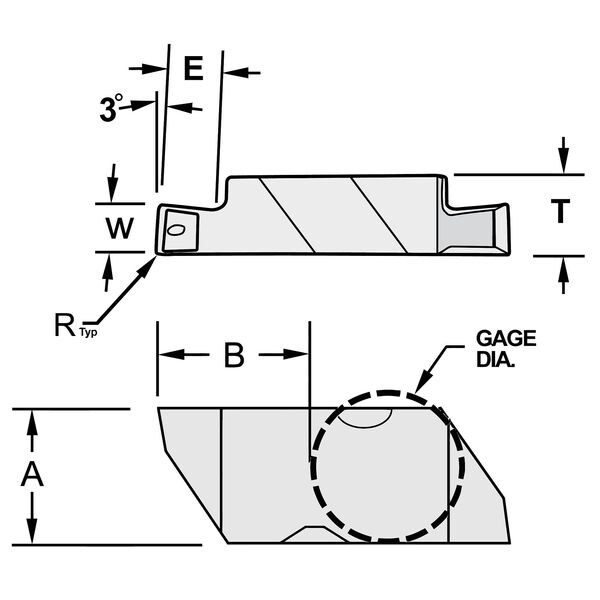

Parting and Grooving Insert, Top Notch, NG, 0.0350 in, Carbide
| Item | Parting and Grooving Insert |
|---|---|
| Insert Shape | Top Notch |
| Insert Style | NG |
| Insert Size | 6 |
| Grade | UD51 |
| Corner Radius | 0.035 in |
| Insert Material | Carbide |
| Rake | Positive |
| ISO Number | NG-6R W.375 |
| Width | 3/8 in |
| Hardened (H) Compatibility | No |
| Insert Seat Size | 6 |
| ANSI Number | NG-6R W.375 |
| Steel (P) Compatibility | Yes |
| Stainless (M) Compatibility | Yes |
| Mounting Style | Top Notch Clamp |
| Style | NG |
| Workpiece Compatibility | Stainless (M), Steel (P) |
| Insert Thickness | 0.453 in |
| Super Alloy (S) Compatibility | No |
| Application | General Purpose |
| For Use With | NEL6 |
| No. of Edges | 1 |
| Coating | TiN |
| Cutting Direction | Right Hand |
| Cast Iron (K) Compatibility | No |
| Non Ferrous (N) Compatibility | No |
| Primary Material Application ISO Code | P |
| Hole Type | No Hole |
| ANSI Code | NG-6R W.375 |
| Clearance Angle | 3 deg |
| Cutting Application | Grooving |
| Secondary Material Application | Cast Iron, Nickel, Stainless Steel, Titanium |
| Cutting Height | 0.453 in |
| Insert Holding Type | Clamp |
| Secondary Material Application ISO Code | K, M, S |
| Material - Machining | Carbide |
| Max. Grooving Width | 3/8 in |
| Thickness | 0.383 in |
| Manufacturer Grade | UD51 |
| Primary Material Application | Steel |
| Package Quantity | 1 |
