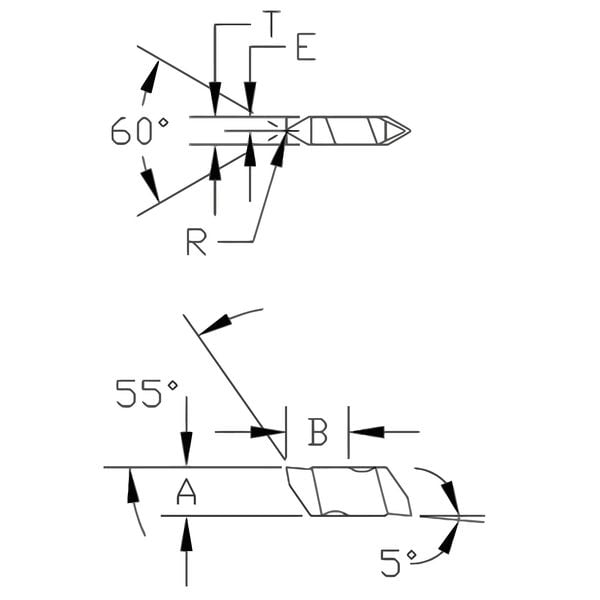

Threading Insert, Top Notch, NTP, 0.0030 in, Carbide
| Item | Threading Insert |
|---|---|
| Insert Shape | Top Notch |
| Insert Style | NTP |
| Insert Size | 2 |
| Grade | UD51 |
| Corner Radius | 0.003 in |
| Insert Material | Carbide |
| Rake | Positive |
| ISO Number | NTP-2R |
| Workpiece Compatibility | Stainless (M), Steel (P) |
| Coating | TiN |
| Mounting Style | Top Notch Clamp |
| Non Ferrous (N) Compatibility | No |
| Steel (P) Compatibility | Yes |
| No. of Edges | 1 |
| Cutting Direction | Neutral |
| Stainless (M) Compatibility | Yes |
| ANSI Number | NTP-2R |
| Super Alloy (S) Compatibility | No |
| Style | NTP |
| Cast Iron (K) Compatibility | No |
| For Use With | NEL2 |
| Insert Thickness | 0.219 in |
| Hardened (H) Compatibility | No |
| Min. Thread per Inch | 1 |
| Coating Process | CVD |
| Clearance Angle | 5 deg |
| Hole Type | No Hole |
| Primary Material Application ISO Code | P |
| Secondary Material Application | Cast Iron, Nickel, Stainless Steel, Titanium |
| Cutting Application | Threading |
| Primary Material Application | Steel |
| Manufacturer Grade | UD51 |
| Measurement System | Fractional Inch |
| Included Angle | 60 Degrees |
| Insert Holding Type | Clamp |
| Finish - Machining | TiN |
| Secondary Material Application ISO Code | K, M, S |
| Max. Thread Pitch | 20 |
| Side-to-Cutting Tip | 0.075 in |
| ANSI Code | NTP-2R |
| Cutting Height | 0.219 in |
| Thread Direction | Right Hand |
| Material - Machining | Carbide |
| Number of Cutting Edges | 1 |
| Product Family | Top Notch |
| Threading Location | Internal |
| Insert Length | 17/64 in |
| Insert Type | NTP |
| Package Quantity | 1 |
