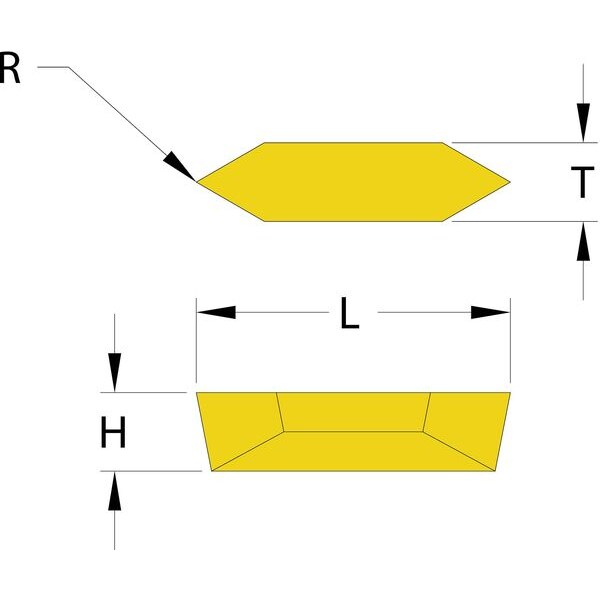

Threading Insert, V84-NV, 0.0060 in, Carbide
| Item | Threading Insert |
|---|---|
| Insert Style | V84-NV |
| Insert Size | 8 |
| Grade | UD51 |
| Corner Radius | 0.006 in |
| Insert Material | Carbide |
| ISO Number | V84-NV |
| Insert Thickness | 1/4 in |
| ANSI Number | V84-NV |
| Mounting Style | V-Bottom Clamp |
| Stainless (M) Compatibility | Yes |
| Workpiece Compatibility | Stainless (M), Steel (P) |
| No. of Edges | 2 |
| Application | General Purpose |
| Hardened (H) Compatibility | No |
| Steel (P) Compatibility | Yes |
| Cast Iron (K) Compatibility | No |
| Non Ferrous (N) Compatibility | No |
| Coating | TiN |
| For Use With | Mfr. No. VE84R/L |
| Super Alloy (S) Compatibility | No |
| Nose Radius | 0.008 in |
| Style | V84 |
| Cutting Direction | Neutral |
| Hole Type | No Hole |
| Coating Process | CVD |
| Insert Holding Type | Clamp |
| Secondary Material Application | Cast Iron, Nickel, Stainless Steel, Titanium |
| Measurement System | Fractional Inch |
| Thickness | 1/4 in |
| Material - Machining | Carbide |
| Cutting Application | Threading |
| Min. Thread per Inch | 5 |
| Primary Material Application ISO Code | P |
| ANSI Code | V84-NV |
| Max. Thread Pitch | 20 |
| Insert Length | 1 in |
| Thread Direction | Right Hand |
| Number of Cutting Edges | 2 |
| Finish - Machining | TiN |
| Manufacturer Grade | UD51 |
| Secondary Material Application ISO Code | K, M, S |
| Included Angle | 90 Degrees |
| Primary Material Application | Steel |
| Package Quantity | 1 |
