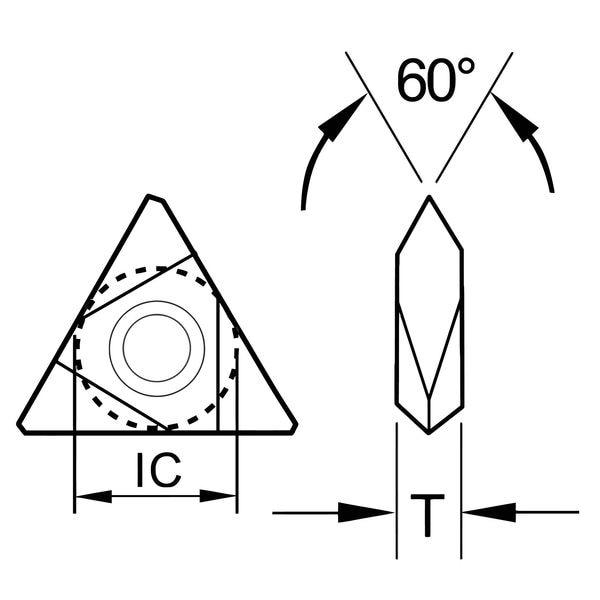

Triangle Turning Insert, Triangle, 4, TNMC, 0.003 in, Carbide
| Item | Triangle Turning Insert |
|---|---|
| Insert Shape | Triangle |
| Insert Style | TNMC |
| Inscribed Circle | 4 |
| Insert Size | 43 |
| Chip-Breaker | No |
| Grade | UD51 |
| Corner Radius | 0.003 in |
| Insert Material | Carbide |
| Insert Application | General Purpose |
| Rake | Positive |
| ANSI Number | TNMC-43NV |
| Mounting Hole Dia. | 0.203 in |
| Non Ferrous (N) Compatibility | No |
| Stainless (M) Compatibility | Yes |
| Workpiece Compatibility | Stainless (M), Steel (P) |
| Style | TNMC |
| No. of Edges | 3 |
| Coating | TiN |
| For Use With | MTHOR/L4 |
| Application | General Purpose |
| Super Alloy (S) Compatibility | No |
| Hardened (H) Compatibility | No |
| Cutting Direction | Neutral |
| Insert Thickness | 0.188 in |
| Cast Iron (K) Compatibility | No |
| Steel (P) Compatibility | Yes |
| Mounting Style | Clamp and Lock Pin |
| Shape | Triangle |
| Secondary Material Application | Cast Iron, Nickel, Stainless Steel, Titanium |
| Measurement System | Fractional Inch |
| Cutting Application | Threading |
| Thickness | 3/16 in |
| ANSI Code | TNMC-43NV |
| Included Angle | 60 Degrees |
| Secondary Material Application ISO Code | K, M, S |
| Clearance Angle | 0 deg |
| Manufacturer Grade | UD51 |
| Number of Cutting Edges | 3 |
| Material - Machining | Carbide |
| Finish - Machining | TiN |
| Primary Material Application ISO Code | P |
| Coating Process | CVD |
| Primary Material Application | Steel |
| Material | Carbide |
| Package Quantity | 1 |
