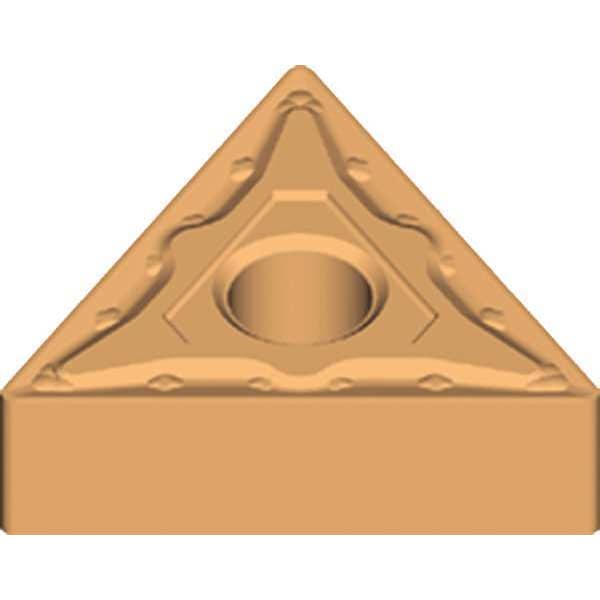

Triangle Turning Insert, Triangle, 4, TNMG, 1, Carbide
| Item | Triangle Turning Insert |
|---|---|
| Insert Shape | Triangle |
| Insert Style | TNMG |
| Inscribed Circle | 4 |
| Insert Size | 431 |
| Chip-Breaker | Yes |
| Grade | UD51 |
| Corner Radius | 1 |
| Insert Material | Carbide |
| Insert Application | Roughing |
| Rake | Negative |
| ISO Number | 220404 |
| Stainless (M) Compatibility | Yes |
| Relief Angle | 0 Degrees |
| Insert Thickness | 0.188 in |
| Mounting Style | Clamp and Lock Pin |
| Cast Iron (K) Compatibility | Yes |
| Hardened (H) Compatibility | No |
| Style | TNMG |
| Non Ferrous (N) Compatibility | No |
| Steel (P) Compatibility | Yes |
| For Use With | MTUNR4, MTFNR4 |
| No. of Edges | 3 |
| Application | Roughing |
| Mounting Hole Dia. | 0.203 in |
| Coating | TiN |
| ANSI Number | TNMG 431 UD51 |
| Nose Radius | 0.015 in |
| Cutting Direction | Neutral |
| Super Alloy (S) Compatibility | No |
| Workpiece Compatibility | Cast Iron (K), Stainless (M), Steel (P) |
| Primary Material Application ISO Code | P |
| Included Angle | 60 Degrees |
| Secondary Material Application ISO Code | K, M, S |
| Insert Holding Type | Straight Hole |
| Secondary Material Application | Cast Iron, Nickel, Stainless Steel, Titanium |
| Clearance Angle | 0 deg |
| Cutting Application | Boring, Turning |
| ANSI Code | TNMG431 UD51 |
| Material - Machining | Carbide |
| Primary Material Application | Steel |
| Measurement System | Fractional Inch |
| Finish - Machining | TiN |
| Number of Cutting Edges | 3 |
| Thickness | 3/16 in |
| Shape | Triangle |
| Coating Process | CVD |
| Manufacturer Grade | UD51 |
| Material | Carbide |
| Package Quantity | 1 |
