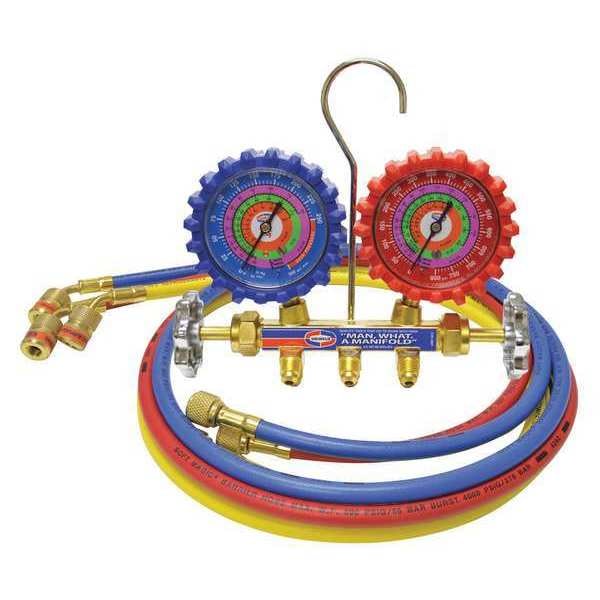

Mechanical Manifold Gauge Set, 60" L Hose
| Item | Manifold Gauge Set |
|---|---|
| Number of Valves | 2 |
| Refrigerant Compatibility | R-22, R-404A, R-410A |
| Number of Hoses | 3 |
| Vacuum Port Size | 1/4 in |
| Gauges High Side Red | 0 to 800 psi |
| Features | Easy Access Front Hose Holders, Resettable Valve Stem Packing for Long Reliable Service |
| Gauges Low Side Blue | 0 to 500 psi |
| Hose Length | 3 ft |
| Material | Forged Brass |
| Gauge Accuracy | +/-3-2-3% |
| Includes | 5 ft Hose Set |
| Product Type | Manifold Gauge Set |
| Display Illumination | Non-Illuminated |
| Display Type | Analog |
| Body Material | Brass |
| Hose Connection Thread Direction | Right-Hand |
| Hose Color | Yellow, Blue, Red |
| Calibration Certificate Type | Not Certified |
| Gauge Type | High Side, Low Side |
| Manifold Port Connection Thread Direction | Right-Hand |
| Vacuum Port Connection Thread Direction | Right-Hand |
| Accuracy | +/- 3-2-3% |
| Manifold Port Connection Size | 1/4 in |
| Manifold Port Connection Gender | Male |
| Includes Gauge Boots | Boots Included |
| Vacuum Port Connection Size | 1/4 in |
| Pressure Resolution | 2 psi |
| Low Side Display Pressure - Minimum | 30 inHg |
| For Refrigerant Type | R-22, R-404A, R-410A |
| High Side Display Pressure - Minimum | 0 psi |
| Manifold Port Connection Type | NPT |
| Gauge Diameter | 3-1/8 in |
| Pressure Units Measured | psi |
| App Compatibility | Not Applicable |
| Low Side Display Pressure - Maximum | 500 psi |
| Response Time | Instantaneous |
| Vacuum Port Connection Gender | Male |
| A2L Compatibility | Not A2L Compatible |
| Vacuum Port Connection Type | UNF |
| Includes Sightglass | Sightglass Not Included |
| Series | QS4L |
| Hose Connection Type | Ball Valve |
| Temperature Resolution | 2 deg F |
| Includes Vacuum Port | Vacuum Port Included |
| Display Size | 2-1/2 in |
| High Side Display Pressure - Maximum | 800 psi |
| Temperature Units Measured | Degrees F |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
