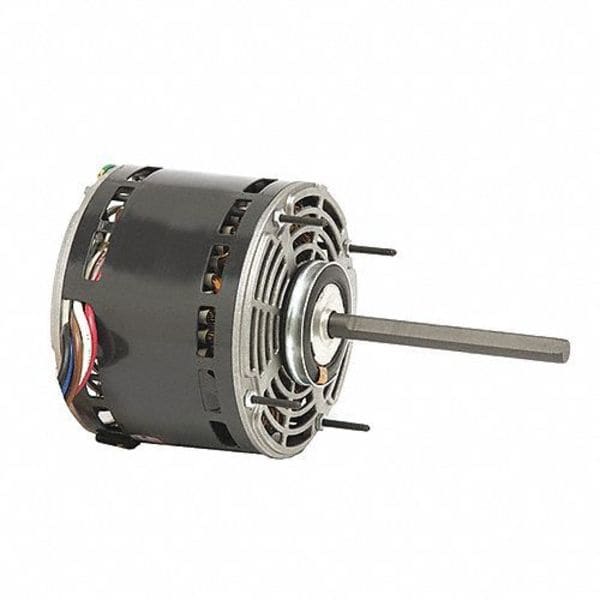

Motor, 1/2HP, 1075/3SPD, 115V, 60HZ, 48Y, ODP
| Item | Direct Drive Blower Motor |
|---|---|
| Motor Design | Permanent Split Capacitor |
| HP | 1/2 |
| RPM Range | 1,001-1,100 |
| Nameplate RPM | 1,075 |
| Voltage | 115V AC |
| Frame | 48 |
| Motor Mounting Type | Stud/Hub |
| Phase | Single |
| Motor Enclosure Design | Open Air-Over |
| Max. Amps | 9.8 |
| Body Dia. | 5-5/8 in |
| Duty | Continuous |
| Includes | Hub Rings |
| Motor Application | Commercial, Residential |
| Motor Shaft Rotation | CCW |
| Ins. Class | B |
| Shaft Length | 3-1/2 in |
| No. of Speeds | 3 |
| Overall Length | 8-5/16 in |
| Hz | 60 |
| Length Less Shaft | 4-13/16 in |
| Shaft Dia. | 1/2 in |
| Motor Thermal Protection | Auto |
| Motor Bearings | Self Align |
| Full Load Amps | 5 |
| Watts | 400 |
| Duty Cycle | Continuous |
| Weight | 11.67 lb |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
