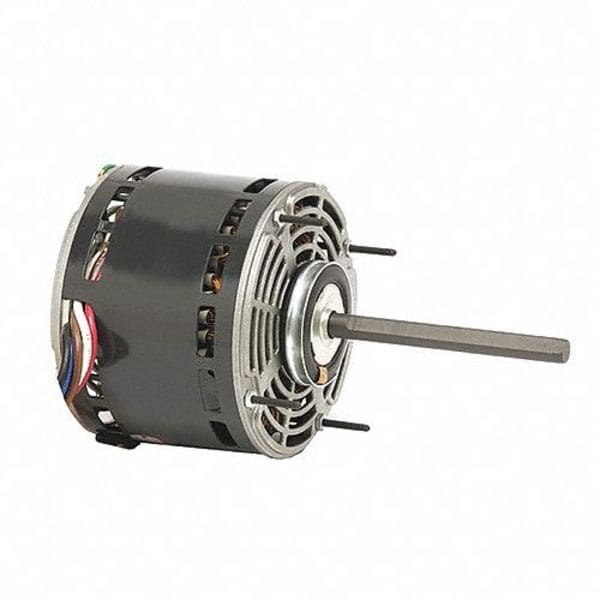

Motor, 1/2HP, 1075/4SPD, 208-230V, 60HZ, OAO
| Item | Direct Drive Blower Motor |
|---|---|
| Motor Design | Permanent Split Capacitor |
| HP | 1/2 |
| RPM Range | 1,101-1,200 |
| Nameplate RPM | 1,075 |
| Voltage | 208-230V AC |
| Frame | 48 |
| Motor Mounting Type | Hub/Stud |
| Phase | Single |
| Motor Enclosure Design | Open Air-Over |
| Shaft Dia. | 1/2 in |
| Body Dia. | 5-5/8 in |
| Motor Shaft Rotation | CCW, CW |
| No. of Speeds | 4 |
| Motor Service Factor | 3.3 |
| Max. Ambient Temp. | 40 deg C |
| Max. Amps | 7.79 |
| Ins. Class | A |
| Shaft Length | 5-1/4 in |
| Length Less Shaft | 5-1/8 in |
| Motor Thermal Protection | Auto |
| Hz | 60 |
| Duty | Continuous |
| Overall Length | 12-3/4 in |
| Motor Bearings | Opposite End, Shaft End |
| Full Load Amps | 3.3-3.1 A |
| Weight | 20.4 lb |
| Watts | 400 |
| Duty Cycle | Continuous |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
