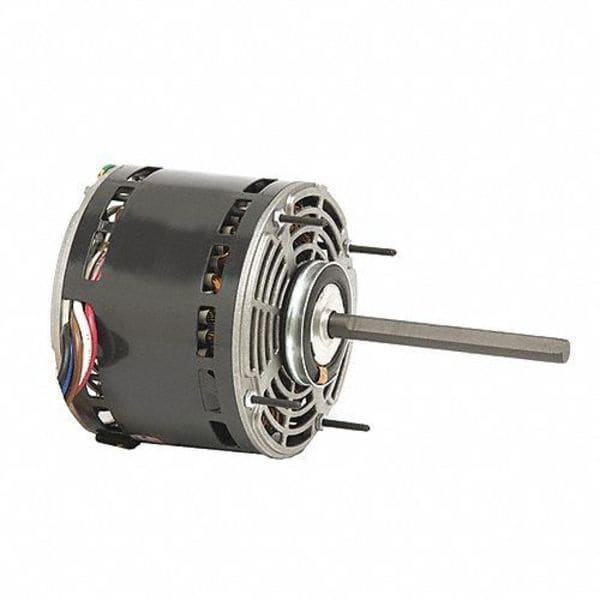

Motor, 1/2HP, 1625/3SPD, 115V, 60HZ, 48YZ
| Item | Direct Drive Blower Motor |
|---|---|
| Motor Design | Permanent Split Capacitor |
| HP | 1/2 |
| RPM Range | 1,601-1,700 |
| Nameplate RPM | 1,625 |
| Voltage | 115V AC |
| Frame | 48 |
| Motor Mounting Type | Ring/Stud |
| Phase | Single |
| Motor Enclosure Design | Open Air-Over |
| Body Dia. | 5-5/8 in |
| Shaft Length | 5 in |
| Max. Amps | 20.19 |
| Hz | 60 |
| Shaft Dia. | 1/2 in |
| Motor Service Factor | 5.5 |
| Duty | Continuous |
| No. of Speeds | 3 |
| Length Less Shaft | 6-3/8 in |
| Includes | Hub Rings |
| Motor Application | Commercial, Residential |
| Motor Shaft Rotation | CCW |
| Motor Bearings | Sleeve |
| Full Load Amps | 5.5 |
| Ins. Class | B |
| Max. Ambient Temp. | 40 deg C |
| Overall Length | 11-3/8 in |
| Motor Thermal Protection | Auto |
| Watts | 400 |
| Weight | 15.59 lb |
| Duty Cycle | Continuous |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
