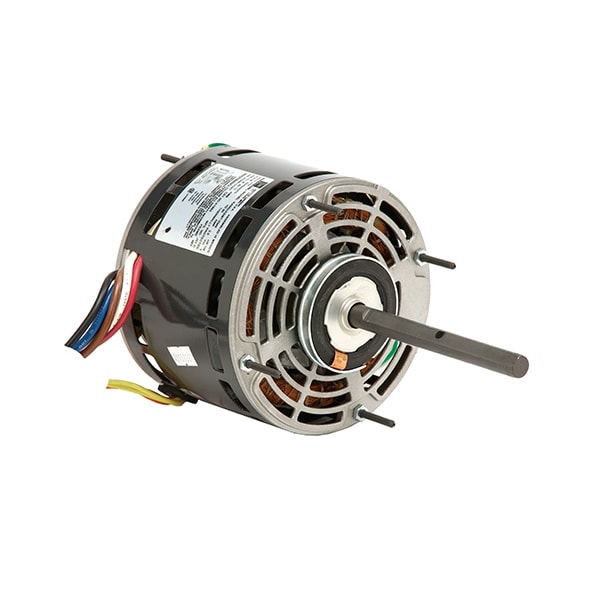

Motor, 1/2HP, 825/2SPD, 208-230V, 60HZ
| Item | Direct Drive Blower Motor |
|---|---|
| Motor Design | Permanent Split Capacitor |
| HP | 1/2 |
| RPM Range | 0-1,000 |
| Nameplate RPM | 825 |
| Voltage | 230V AC |
| Frame | 48 |
| Motor Mounting Type | Band/Hub |
| Phase | Single |
| Motor Enclosure Design | Open Dripproof |
| Shaft Length | 4 in |
| Motor Service Factor | 3.9 |
| Motor Thermal Protection | Auto |
| Body Dia. | 5-5/8 in |
| Motor Shaft Rotation | CCW |
| Full Load Amps | 3.9 |
| No. of Speeds | 2 |
| Motor Bearings | 6203 ; 6203 |
| Ins. Class | B |
| Length Less Shaft | 5-9/16 in |
| Hz | 60 |
| Max. Amps | 7.43 |
| Max. Ambient Temp. | 40 deg C |
| Duty | Continuous |
| Shaft Dia. | 1/2 in |
| Weight | 12.6 lb |
| Watts | 400 |
| Duty Cycle | Continuous |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
