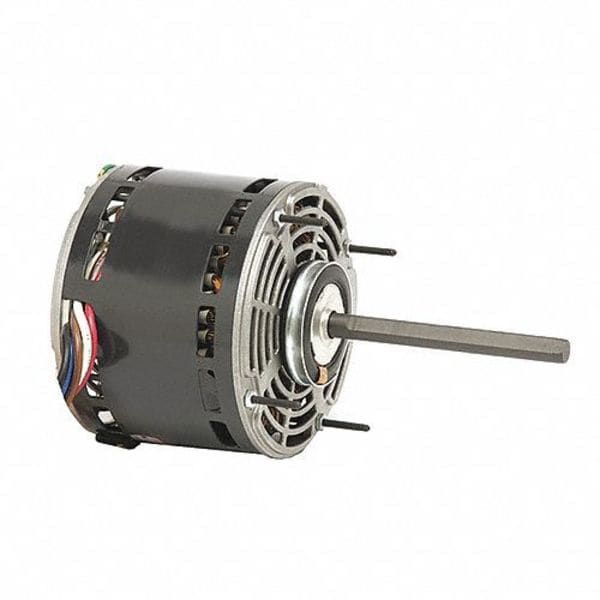

Motor, 1/2HP, 825/3SPD, 208-230V, 60HZ
| Item | Direct Drive Blower Motor |
|---|---|
| Motor Design | Permanent Split Capacitor |
| HP | 1/2 |
| RPM Range | 0-1,000 |
| Nameplate RPM | 825 |
| Voltage | 208-230V AC |
| Frame | 48 |
| Motor Mounting Type | Hub |
| Phase | Single |
| Motor Enclosure Design | Open Air-Over |
| Shaft Length | 3-1/8 in |
| Max. Amps | 4.4 |
| No. of Speeds | 3 |
| Motor Shaft Rotation | CCW |
| Body Dia. | 5-5/8 in |
| Max. Ambient Temp. | 40 deg C |
| Length Less Shaft | 7-1/8 in |
| Ins. Class | B |
| Full Load Amps | 4.4 |
| Duty | Continuous |
| Shaft Dia. | 1/2 in |
| Motor Application | Blower; Fan |
| Motor Bearings | Self Align |
| Motor Thermal Protection | Auto |
| Includes | Hub Rings |
| Hz | 60 |
| Overall Length | 9-11/16 in |
| Weight | 17.46 lb |
| Watts | 400 |
| Duty Cycle | Continuous |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
