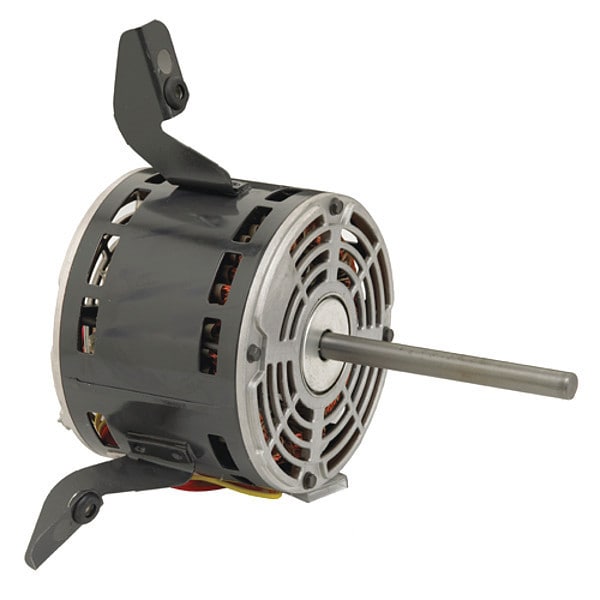

Motor, 1/3HP, 825/3SPD, 208-230V, 60HZ
| Item | Direct Drive Blower Motor |
|---|---|
| Motor Design | Permanent Split Capacitor |
| HP | 0.33 |
| RPM Range | 0-1,000 |
| Nameplate RPM | 825 |
| Voltage | 208-230V AC |
| Frame | 48 |
| Motor Mounting Type | Bracket |
| Phase | Single |
| Motor Enclosure Design | Open Air-Over |
| Max. Amps | 2.25 |
| Overall Length | 7-5/16 in |
| Duty | Continuous |
| Hz | 60 |
| Shaft Length | 2-3/16 in |
| Motor Shaft Rotation | CCW |
| Body Dia. | 5-5/8 in |
| Motor Application | Blower; Fan |
| Shaft Dia. | 1/2 in |
| Full Load Amps | 1.9 |
| Ins. Class | B |
| Motor Thermal Protection | Auto |
| Motor Bearings | Self Align |
| No. of Speeds | 3 |
| Max. Ambient Temp. | 40 deg C |
| Length Less Shaft | 4-13/16 in |
| Watts | 300 |
| Weight | 17.7 lb |
| Duty Cycle | Continuous |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
