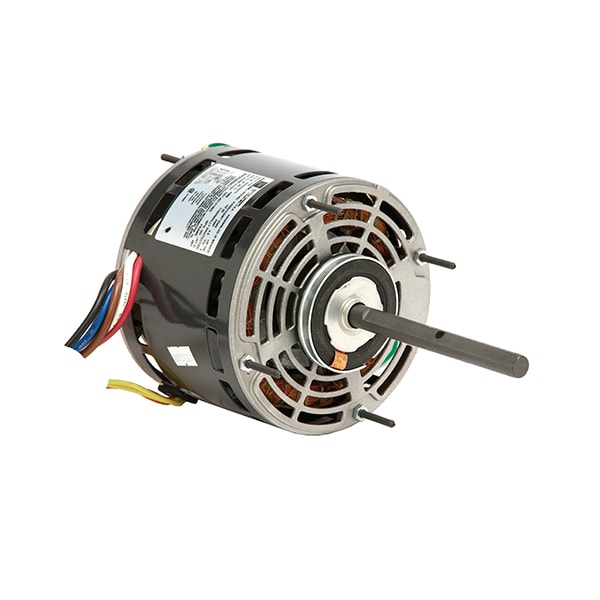

Motor, 1/4HP, 1625/2SPD, 460V, 50, 60HZ
| Item | Direct Drive Blower Motor |
|---|---|
| Motor Design | Permanent Split Capacitor |
| HP | 1/4 |
| RPM Range | 1,601-1,700 |
| Nameplate RPM | 1,625 |
| Voltage | 460V AC |
| Frame | 48 |
| Motor Mounting Type | Stud |
| Phase | Single |
| Motor Enclosure Design | Open Dripproof |
| Motor Thermal Protection | Auto |
| No. of Speeds | 2 |
| Hz | 60/50 Hz |
| Full Load Amps | 0.8 |
| Max. Ambient Temp. | 40 deg C |
| Body Dia. | 5-5/8 in |
| Overall Length | 10-9/16 in |
| Duty | Continuous |
| Ins. Class | B |
| Motor Service Factor | 0.8 |
| Max. Amps | 1.97 |
| Length Less Shaft | 4-9/16 in |
| Shaft Dia. | 1/2 in |
| Shaft Length | 6 in |
| Motor Shaft Rotation | CCW |
| Motor Bearings | 6201 ; 6201 |
| Weight | 19.45 lb |
| RPM @ 50Hz | 1,625 rpm |
| Full Load Amps @ 50Hz | 0.8 A |
| Voltage @ 50Hz | 460 |
| Watts | 200 |
| Service Factor @ 50Hz | 1 |
| Duty Cycle | Continuous |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
