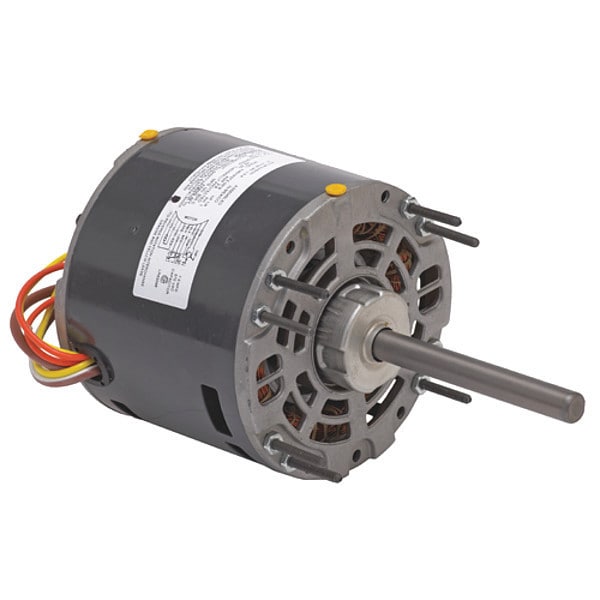

Motor, 1/5HP, 1050/3SPD, 115V, 60HZ, 42Y
| Item | Direct Drive Blower Motor |
|---|---|
| Motor Design | Permanent Split Capacitor |
| HP | 1/5 |
| RPM Range | 1,101-1,200 |
| Nameplate RPM | 1,050 |
| Voltage | 115V AC |
| Frame | 42 |
| Motor Mounting Type | Hub/Stud |
| Phase | Single |
| Motor Enclosure Design | Open Air-Over |
| Motor Bearings | Self Align |
| Motor Thermal Protection | Auto |
| Max. Ambient Temp. | 40 deg C |
| Shaft Length | 4-11/16 in |
| Motor Shaft Rotation | CCW |
| Max. Amps | 6.35 |
| Hz | 60 |
| Shaft Dia. | 1/2 in |
| Length Less Shaft | 5-15/16 in |
| Overall Length | 10-7/8 in |
| Duty | Continuous |
| Body Dia. | 5 in |
| Ins. Class | B |
| No. of Speeds | 3 |
| Full Load Amps | 3.2 |
| Weight | 19.6 lb |
| Watts | 200 |
| Duty Cycle | Continuous |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
