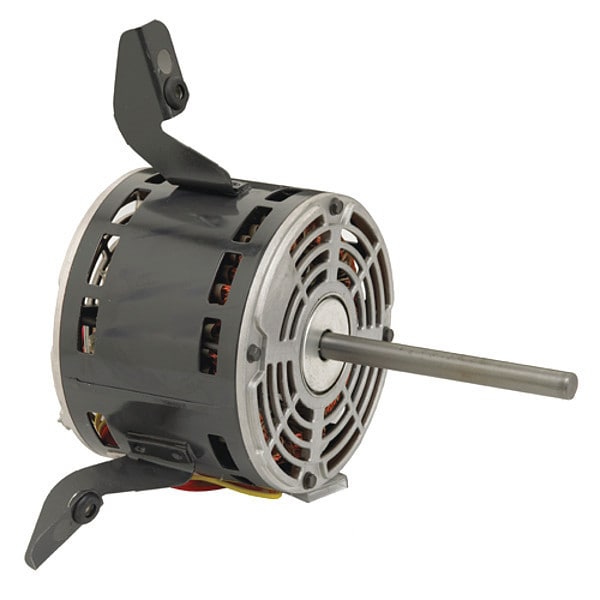

Motor, 1/8HP, 1000/5SPD, 115V, 60HZ, 42Y
| Item | Direct Drive Blower Motor |
|---|---|
| Motor Design | Permanent Split Capacitor |
| HP | 1/8 |
| RPM Range | 1,001-1,100 |
| Nameplate RPM | 1,000 |
| Voltage | 115V AC |
| Frame | 42 |
| Motor Mounting Type | Base |
| Phase | Single |
| Motor Enclosure Design | Open Air-Over |
| Motor Shaft Rotation | CCW |
| Length Less Shaft | 4-5/16 in |
| Body Dia. | 5-5/8 in |
| No. of Speeds | 5 |
| Max. Amps | 4.25 |
| Duty | Continuous |
| Motor Thermal Protection | Auto |
| Overall Length | 9-3/8 in |
| Ins. Class | B |
| Motor Bearings | 6201 ; 6201 |
| Shaft Length | 5-1/16 in |
| Hz | 60 |
| Shaft Dia. | 1/2 in |
| Full Load Amps | 2.3 |
| Duty Cycle | Continuous |
| Watts | 100 |
| Weight | 8.26 lb |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
