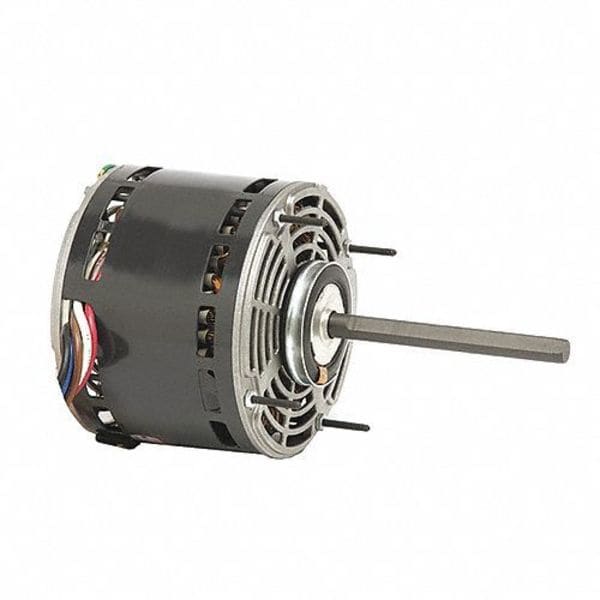

Motor, 3/4HP, 1075/4SPD, 115V, 60HZ, 48Y, OAO
| Item | Direct Drive Blower Motor |
|---|---|
| Motor Design | Permanent Split Capacitor |
| HP | 3/4 |
| RPM Range | 1,001-1,100 |
| Nameplate RPM | 1,075 |
| Voltage | 115V AC |
| Frame | 48 |
| Motor Mounting Type | Stud/Hub |
| Phase | Single |
| Motor Enclosure Design | Open Air-Over |
| Shaft Length | 6 in |
| Max. Amps | 21.16 |
| Motor Bearings | Thrust |
| No. of Speeds | 4 |
| Ins. Class | B |
| Includes | Hub Rings |
| Full Load Amps | 12.1 |
| Hz | 60 |
| Body Dia. | 5-5/8 in |
| Shaft Dia. | 7/16 in |
| Motor Thermal Protection | Auto |
| Motor Shaft Rotation | CCW |
| Motor Application | Commercial, Residential |
| Length Less Shaft | 6-3/8 in |
| Overall Length | 12-3/8 in |
| Duty | Continuous |
| Weight | 20 lb |
| Duty Cycle | Continuous |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
