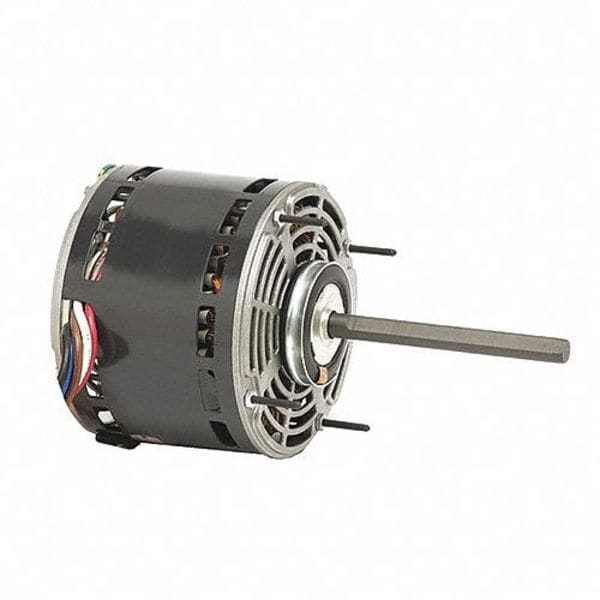

Motor, 3/4HP, 1075/5SPD, 115V, 60HZ, 48Y
| Item | Direct Drive Blower Motor |
|---|---|
| Motor Design | Permanent Split Capacitor |
| HP | 3/4 |
| RPM Range | 1,101-1,200 |
| Nameplate RPM | 1,075 |
| Voltage | 115V AC |
| Frame | 48 |
| Motor Mounting Type | Hub |
| Phase | Single |
| Motor Enclosure Design | Open Air-Over |
| Motor Thermal Protection | Auto |
| No. of Speeds | 5 |
| Motor Bearings | Ball |
| Motor Shaft Rotation | CCW |
| Body Dia. | 5-5/8 in |
| Duty | Continuous |
| Max. Ambient Temp. | 40 deg C |
| Shaft Length | 2-1/2 in |
| Full Load Amps | 10 |
| Motor Service Factor | 10 |
| Overall Length | 8-7/8 in |
| Length Less Shaft | 5-3/8 in |
| Max. Amps | 18.73 |
| Ins. Class | B |
| Hz | 60 |
| Shaft Dia. | 1/2 in |
| Watts | 600 |
| Weight | 16 lb |
| Duty Cycle | Continuous |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
