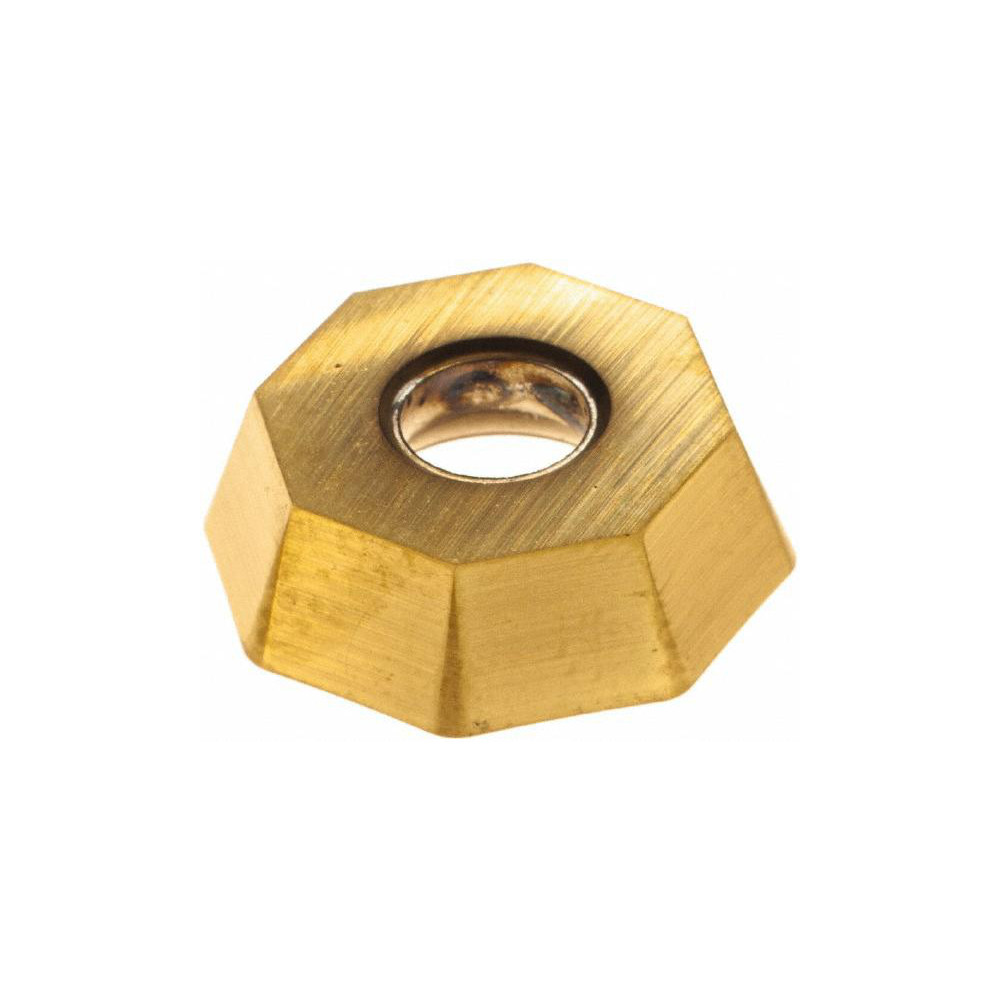

TiN Finish, 0.1875" Thick, 0.6250" Wide
| Insert Style | PS |
|---|---|
| Insert Material | Solid Carbide |
| Insert Shape | Octagon |
| Manufacturer Grade | Ultra-Carb 5 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1875 |
| Coating/Finish | TiN |
| Material Grade | C5 |
| Width (Inch) | 5/8 |
| Length (Inch) | 5/8 |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Corner Radius (Inch) | 1/16 |
| Inscribed Circle Range (Decimal Inch) | 0.6000 to 0.7000 |
| Length Range (Decimal Inch) | 0.6000 to 0.6500 |
| Insert Hand | Neutral |
| Series | O-PS-062-5-1-TN |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | PS45L-MTC54 |
| Iso Code | PS45L-MTC54 |
| Standards | ANSI |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | PS45L-MTC54 |
| Cutter Series Compatibility | Freedom |
| Chip Breaker | PS |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 135 |
| Width (Decimal Inch - 4 Decimals) | 0.6250 |
| Multi-Use Tool | No |
| Length (Decimal Inch - 4 Decimals) | 0.6250 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 64315039 |
