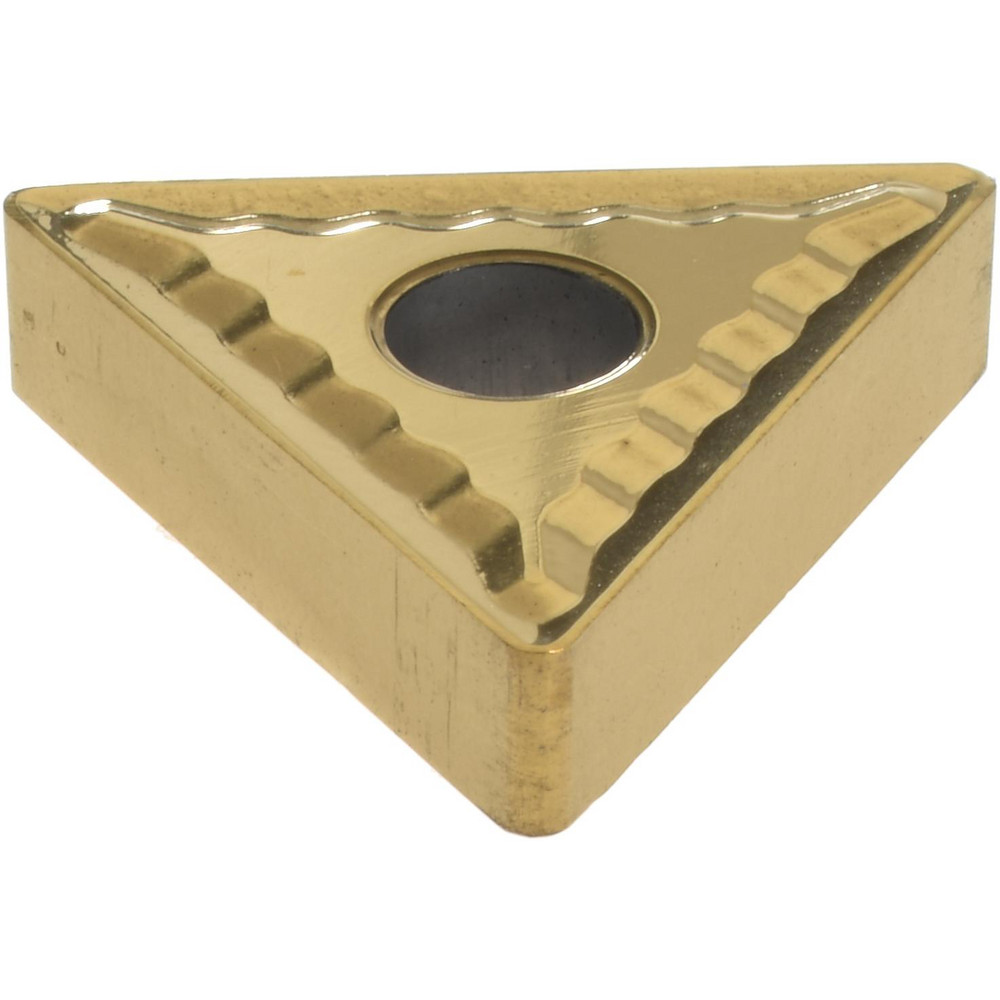

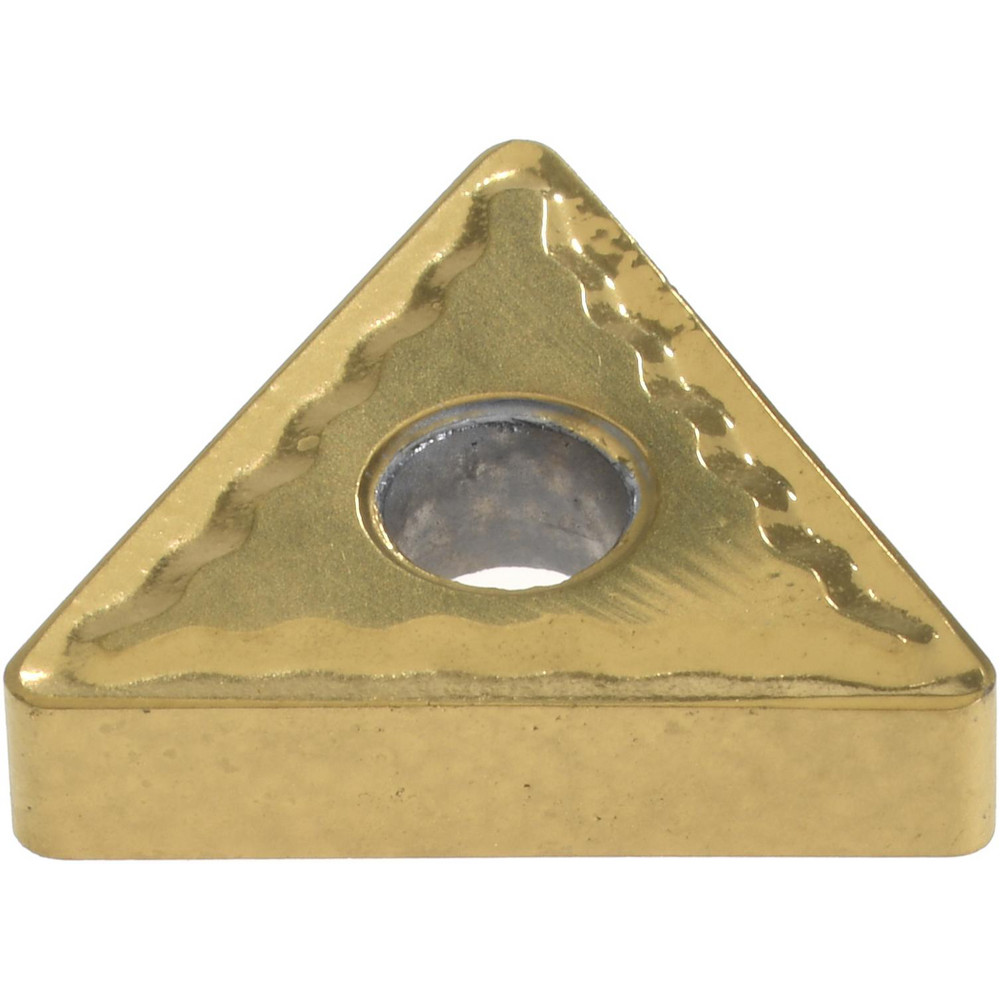

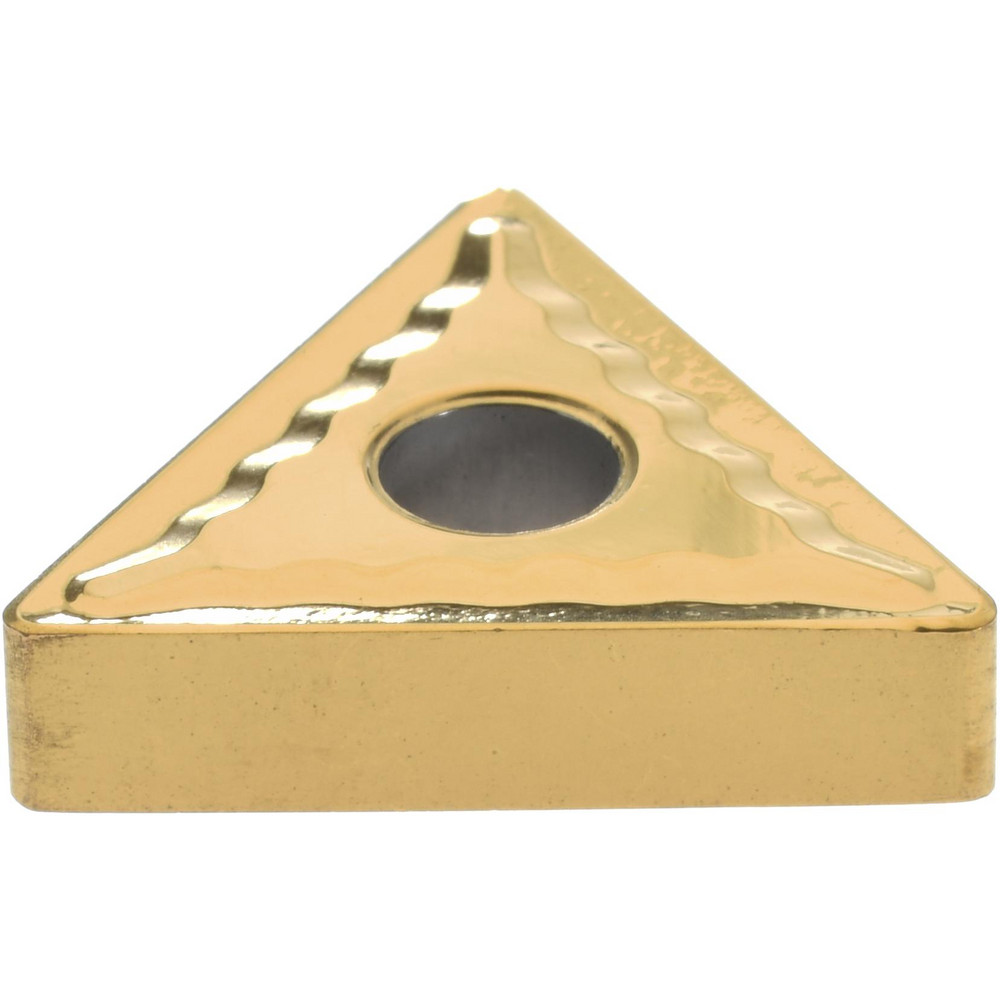

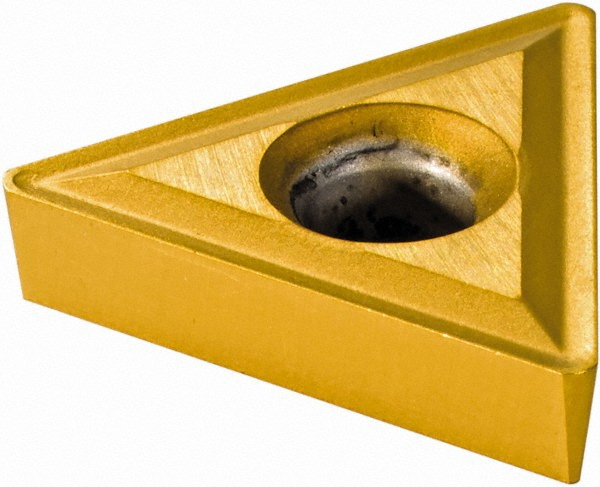

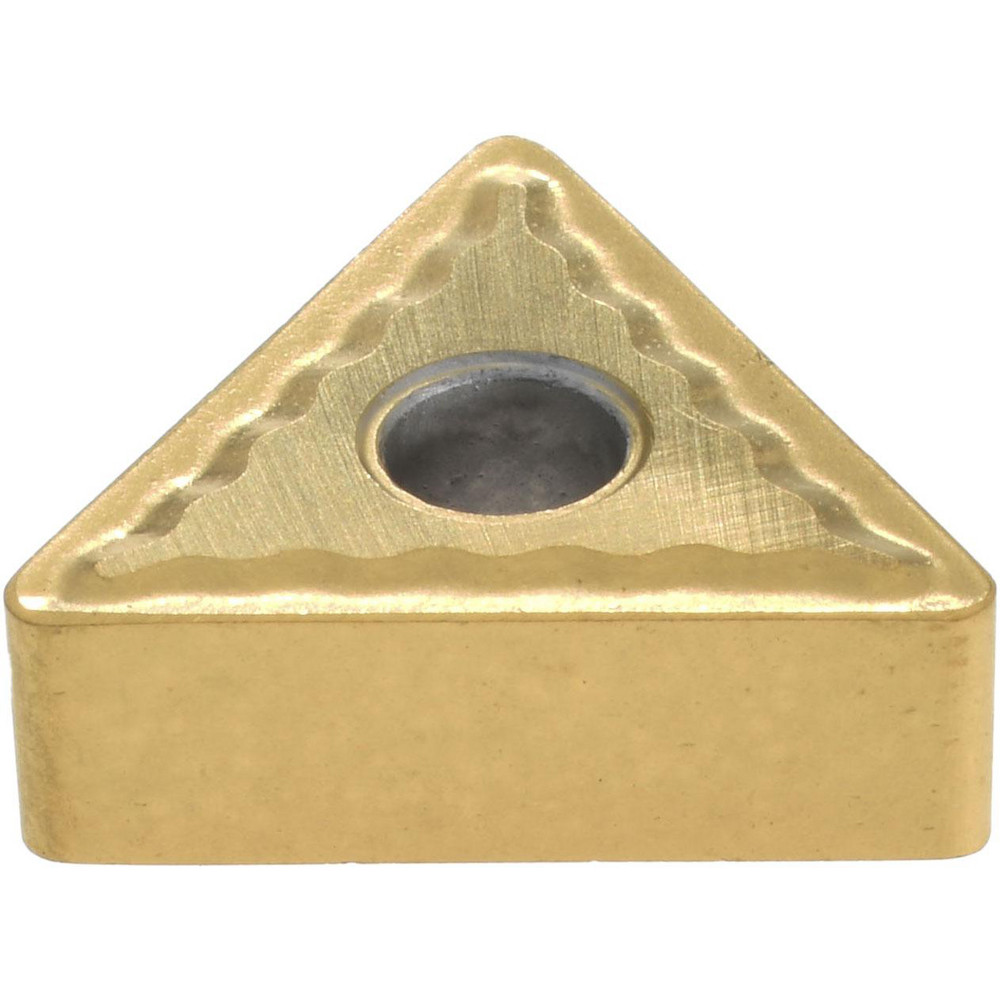

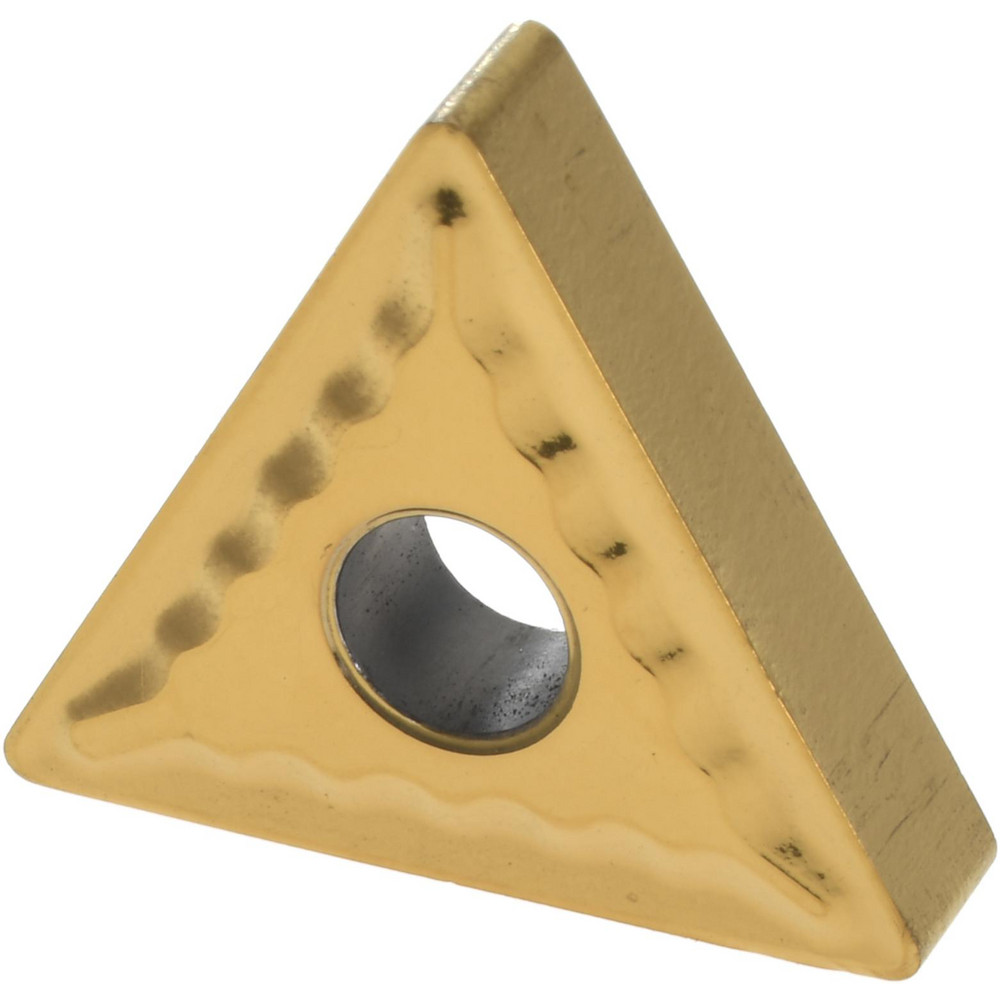

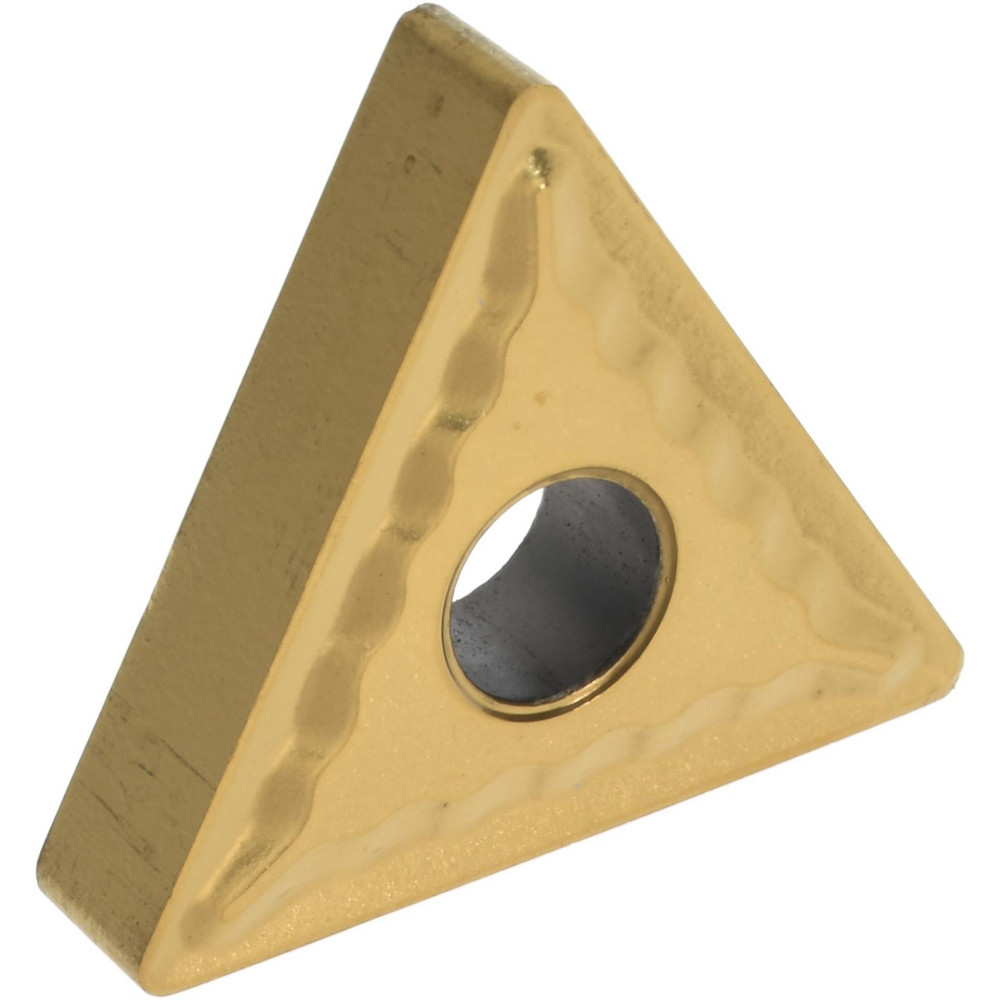

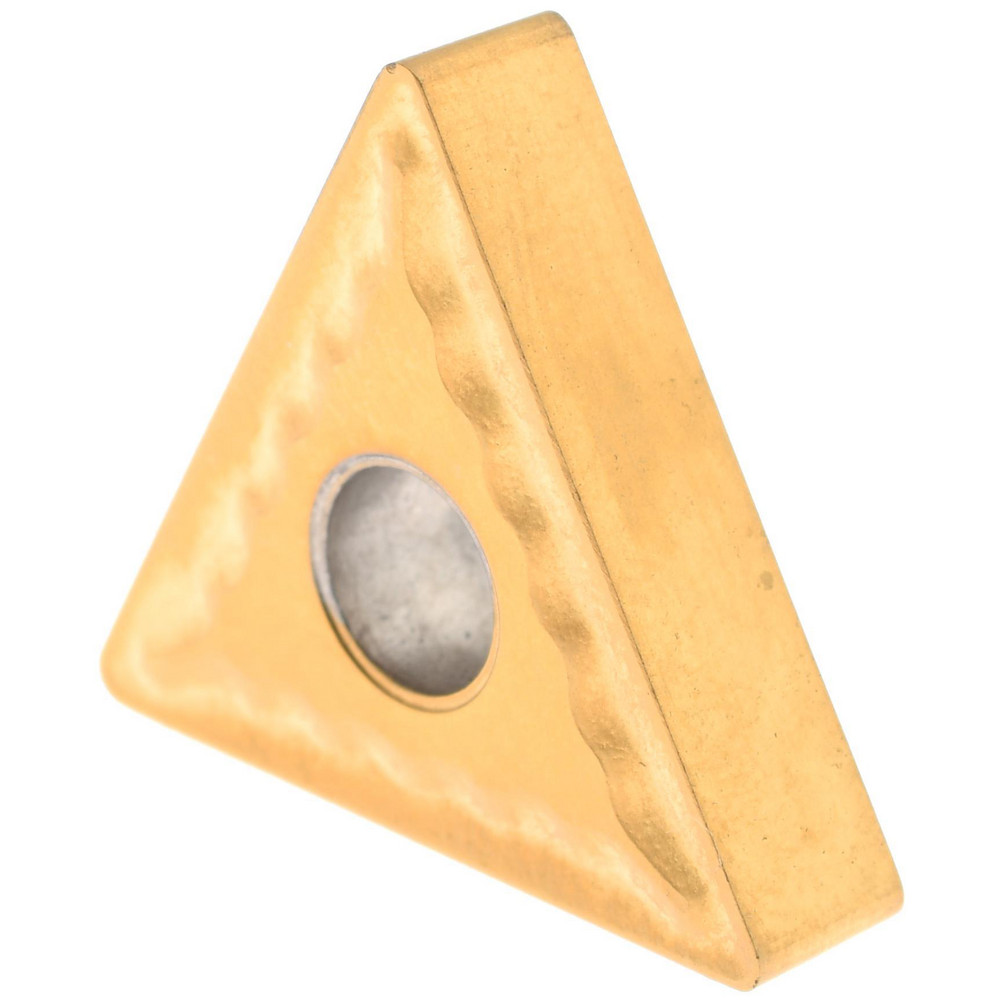

TiN Finish, 0.5000" Inscribed Circle, 0.0312" Corner Radius, 60 deg T - Triangle, Series KENLOC
| Insert Style | TNMG |
|---|---|
| ISO Size Code | 220408 |
| ANSI Size Code | 432 |
| Insert Shape | T - Triangle |
| Included Angle | 60 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Insert Material | Carbide |
| Manufacturer Grade | TCN55 |
| Coating/Finish | TiN |
| Relief Angle | 0 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Thickness (Inch) | 3/16 |
| Series | KENLOC |
| Side Clearance | Negative |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| ISO Insert Code | TNMG220408 |
| ANSI Insert Code | TNMG432 |
| Insert Holding Method | Pin; Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Primary Workpiece Material Code | P; M |
| Material Grade | C5 |
| Chip Breaker | G |
| UNSPSC Code | 23242105 |
| Insert Size Code | 432 |
| Country of Origin | China |
