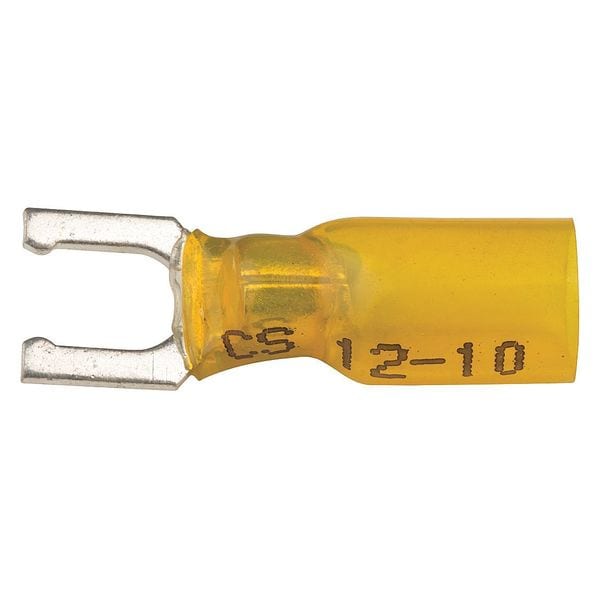

12-10 AWG Heat-Shrink Fork Terminal 1/4" Stud PK10
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Heat Shrink |
| Stud Size | 1/4 in |
| Insulation Color | Yellow |
| Max. Voltage | 600 V |
| Terminal Type | Standard |
| Connection Material | Copper |
| Item | Fork Terminal |
| Standards | CSA Certified, UL Listed |
| Max. Temp. | 221 deg F |
| Connection Type | Crimp |
| Tongue Width - Wire Connector | 0.44 in |
| Seam | Brazed |
| Terminal Connection | Crimp |
| Overall Length | 1.35 in |
| Termination Style | Crimp and Heat Shrink |
| Minimum Wire Size | 12 AWG |
| Maximum Wire Size | 10 AWG |
| Tongue Length | 1.01 - 1.50 inches |
| Insulation Coverage | Full Coverage |
| Special Features | Best Connectors For Visual Checks, Clear Seal Tubing |
| RoHS Compliant | Yes |
| Terminal Shape | Fork |
| Contact Material | Copper |
| Maximum Voltage | 600 V |
| Seam Style | Brazed |
| Maximum Operating Temperature | 221 deg F |
| Contact Finish | Tin |
| Insulation Material | Nylon |
| Tongue Width | 0.44 in |
| Barrel Style | Insulation Grip |
| Package Quantity | 10 |
