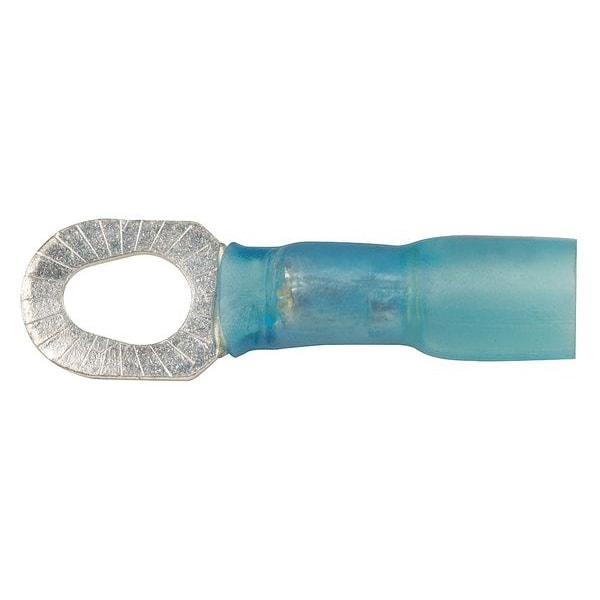

16-14 AWG Heat-Shrink Ring Terminal #6, #8, #10 Stud PK10
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Heat Shrink |
| Stud Size | #10, #6, #8 |
| Insulation Color | Blue |
| Terminal Connection | Crimp |
| Seam | Brazed |
| Standards | UL Listed |
| Terminal Type | Multi-Stud |
| Overall Length | 1.15 in |
| Connection Type | Crimp |
| Connection Material | Copper |
| Item | Ring Terminal |
| Max. Temp. | 221 deg F |
| Tongue Width - Wire Connector | 0.34 in |
| Max. Voltage | 600 V |
| Minimum Operating Temperature | 221 deg F |
| Termination Style | Crimp |
| Insulation Coverage | Full Coverage |
| Maximum Voltage | 600 V |
| Minimum Wire Size | 16 AWG |
| Maximum Wire Size | 14 AWG |
| Maximum Operating Temperature | 194 deg F |
| Tongue Width | 0.34 in |
| Contact Material | Nickel Alloy |
| Terminal Shape | Ring Terminal |
| Seam Style | Brazed |
| Insulation Material | Polyolefin |
| Package Quantity | 10 |
