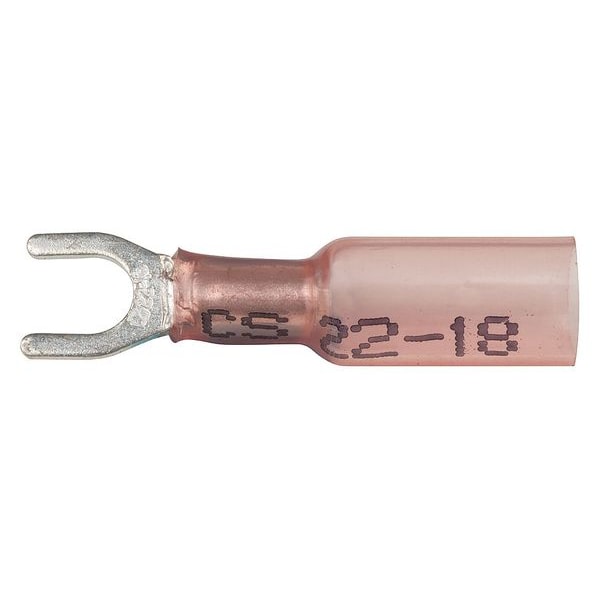

22-18 AWG Heat-Shrink Fork Terminal #10 Stud PK10
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | Heat Shrink |
| Stud Size | #10 |
| Insulation Color | Red |
| Overall Length | 1-1/4 in |
| Connection Type | Crimp |
| Item | Fork Terminal |
| Standards | CSA Certified, UL Listed |
| Terminal Connection | Crimp |
| Tongue Width - Wire Connector | 0.3 in |
| Connection Material | Copper |
| Max. Voltage | 600 V |
| Seam | Brazed |
| Terminal Type | Standard |
| Max. Temp. | 221 deg F |
| RoHS Compliant | Yes |
| Contact Material | Copper |
| Terminal Shape | Fork |
| Minimum Wire Size | 22 AWG |
| Tongue Length | 1.01 - 1.50 inches |
| Seam Style | Brazed |
| Barrel Style | Insulation Grip |
| Maximum Operating Temperature | 221 deg F |
| Maximum Voltage | 600 V |
| Special Features | Best Connectors For Visual Checks, Clear Seal Tubing |
| Contact Finish | Tin |
| Insulation Material | Nylon |
| Insulation Coverage | Full Coverage |
| Termination Style | Crimp and Heat Shrink |
| Maximum Wire Size | 18 AWG |
| Tongue Width | 0.3 in |
| Package Quantity | 10 |
