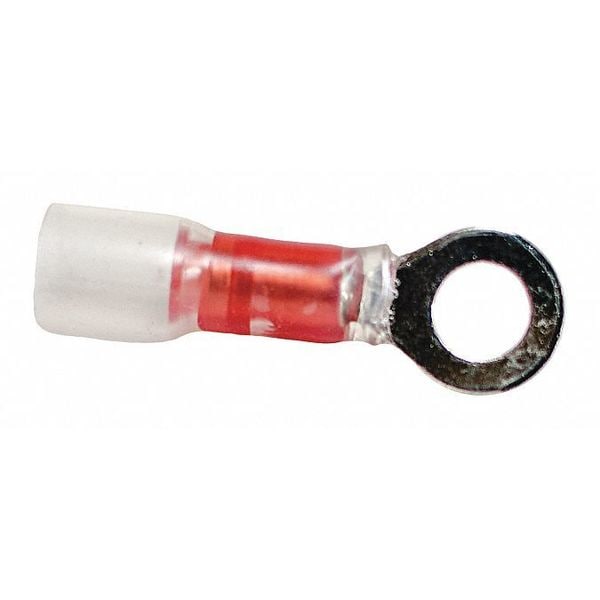

Terminal de anillo termocontraíble de 22-18 AWG con perno de 1/4" paquete de 10.
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | Heat Shrink |
| Stud Size | 1/4 in |
| Insulation Color | Red |
| Tongue Width - Wire Connector | 0.47 in |
| Overall Length | 1.48 in |
| Max. Temp. | 221 deg F |
| Connection Type | Crimp |
| Connection Material | Copper |
| Max. Voltage | 600 V |
| Item | Ring Terminal |
| Terminal Connection | Crimp |
| Seam | Brazed |
| Tongue Width | 0.47 in |
| Minimum Operating Temperature | 221 deg F |
| Maximum Wire Size | 18 AWG |
| Insulation Material | Nylon |
| Maximum Voltage | 600 V |
| Insulation Coverage | Full Coverage |
| Minimum Wire Size | 22 AWG |
| Maximum Operating Temperature | 221 deg F |
| Seam Style | Brazed |
| Contact Material | Nickel Alloy |
| Termination Style | Crimp |
| Terminal Shape | Ring Terminal |
| Package Quantity | 10 |
