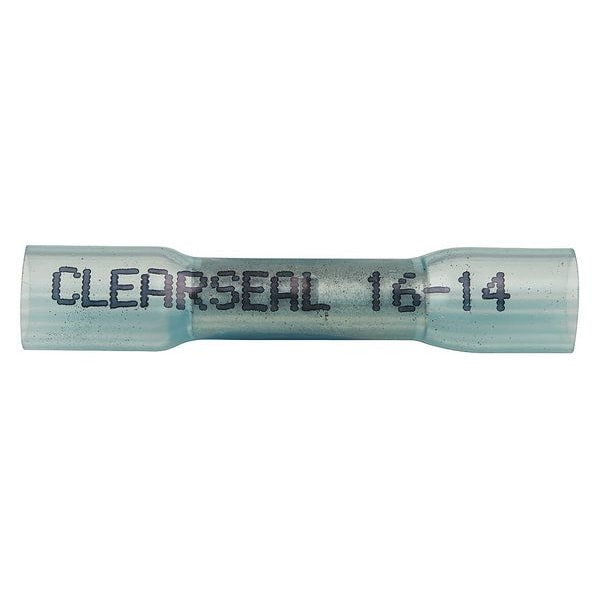

Conector tipo codo, calibre 16-14AWG, color azul, paquete de 10 unidades.
| Item | Splice Connector |
|---|---|
| Wire Range | 16 to 14 AWG |
| Insulation Type | Heat Shrink |
| Seam | Overlapped |
| Connection Type | Crimp |
| Insulation Color | Blue |
| Max. Voltage | 600 V |
| Overall Length | 1-1/2 in |
| Max. Temp. | 221 deg F |
| Standards | CSA Certified, UL Listed |
| Barrel Inside Dia. | 0.097 in |
| Connection Material | Copper |
| Connector Type | Butt Splice |
| Insulation Material | Nylon |
| Barrel Inside Diameter | 0.097 in |
| RoHS Compliant | Yes |
| Maximum Wire Size | 14 AWG |
| Maximum Operating Temperature | 221 deg F |
| Contact Material | Copper |
| Seam Style | Overlapped |
| Special Features | Better Abrasion Resistance, Clear Seal Tubing Features Increase Clarity, Greater Tensile Strength |
| Maximum Voltage | 600 V |
| Minimum Wire Size | 16 AWG |
| Termination Style | Crimp |
| Package Quantity | 10 |
