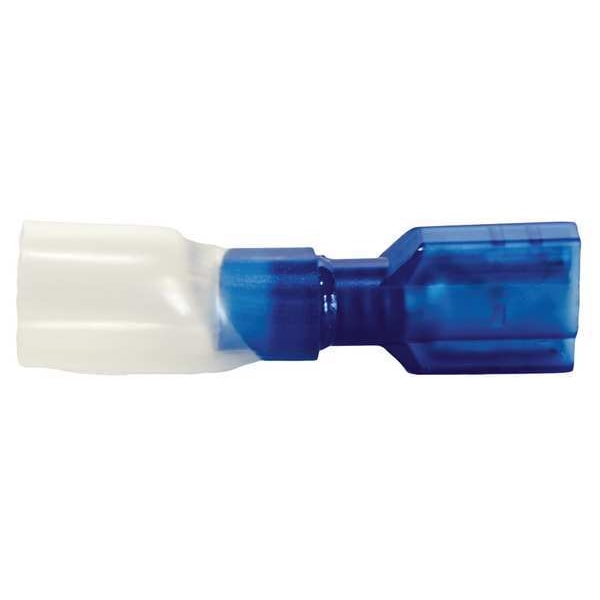

Desconexión macho, azul, 16-14AWG, paquete de 10.
| Item | Male Disconnect |
|---|---|
| Insulation | Full |
| Insulation Color | Blue |
| Connection Type | Crimp |
| Insulation Type | Heat Shrink |
| Wire Range | 16 to 14 AWG |
| Overall Length | 1.35 in |
| Tab Size | 0.032 in x 0.250 in |
| Seam | Brazed |
| Max. Temp. | 221 deg F |
| Max. Voltage | 600 V |
| Connection Material | Copper |
| Barrel Inside Dia. | 0.097 in |
| Standards | UL Listed |
| Minimum Operating Temperature | -40 deg F |
| Minimum Wire Size | 16 AWG |
| Termination Style | Crimp |
| RoHS Compliant | Yes |
| Disconnect Style | Tab |
| Barrel Inside Diameter | 0.097 in |
| Tab Width | 1/4 in |
| Maximum Wire Size | 14 AWG |
| Insulation Material | Nylon |
| Contact Material | Copper |
| Barrel Style | Funnel Entry |
| Seam Style | Brazed |
| Special Features | Crimp and Seal Style Terminals are the Most Comprehensive and Highest Quality Line of Crimp and Seal Heat Shrinkable Connectors in Todays Market, It Has Seamless Tubular Splices Which Ensure Mechanical and Electrical Integrity Under Severe Conditions, The Brazed Seam Terminals will Not Split Open Under the Most Extreme Installation and Operating Conditions, The Heat Shrink Tubing Which is 3:1 Dual Wall Tubing With Adhesive Lining Provides a Waterproof Seal With Durable Abrasion Resistance |
| Maximum Voltage | 600 V |
| Insulation Coverage | Full Coverage |
| Tab Thickness | 0.032 in |
| Maximum Operating Temperature | 194 deg F |
| Terminal Type | Tab |
| Contact Finish | Tin |
| Package Quantity | 10 |
