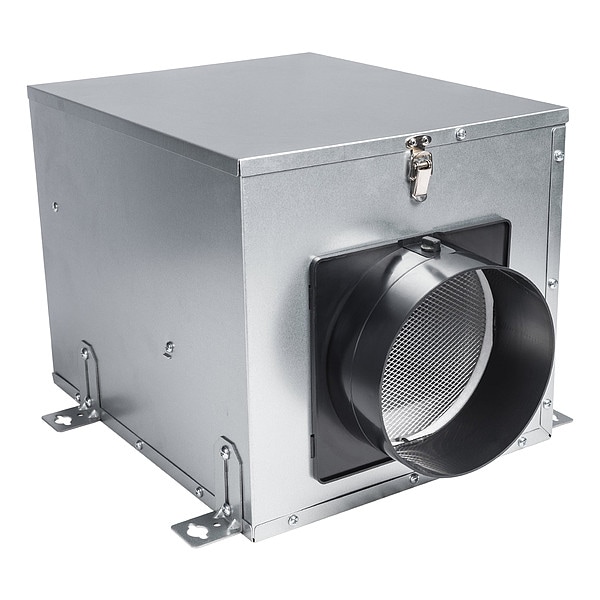

Fresh Air Supply Fan, Floor Mount
| Item | Fresh Air Supply Fan |
|---|---|
| Motor Type | Electronically Commutated |
| Phase | 1 |
| Speed Controllable | No |
| Housing Material | Steel |
| Number of Speeds | 3 |
| Housing Finish | Galvanized |
| Motor Speed | 1,050 RPM |
| For Fan Type | Fresh Air Supply |
| Motor Output Power | 12 W |
| Airflow @ 0.000 in SP | 100 cfm |
| Overall Diameter | 6 in |
| Maximum Inlet Air Temperature | 95 Degrees F |
| Mounting Orientation | Vertical or Horizontal |
| High-Efficiency Motor | Yes |
| Airflow @ Static Pressure | 100 cfm @ 0.100 in wg, 100 cfm @ 0.200 in wg, 100 cfm @ 0.300 in wg, 100 cfm @ 0.400 in wg |
| Duct Diameter | 6 in |
| Standards | ANSI/ASHRAFE 62.2, CA Title 24, CETL US, HVI |
| Includes | Built-in Test Port |
| Control Type | Automatic |
| Speed Control Included | Yes |
| Power Source | Hardwired |
| Power Consumption | 12 W |
| Current | 0.3 A |
| Overall Width | 10-5/8 in |
| Application | General Purpose |
| Nameplate Voltage | 120 V AC |
| Motor IP Rating | IP4X |
| Overall Height | 10-1/8 in |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
