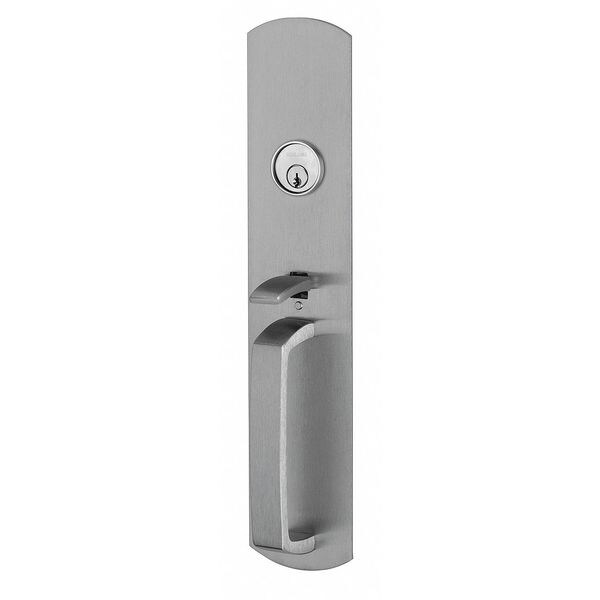

Crossbar Pull w/Lock and Thumbpiece
| Item | Mechanical Exit Device Trim |
|---|---|
| Door Handing | Non-Handed |
| Finish | Satin Chrome |
| Application | Heavy Traffic |
| For Door Thickness | 1-3/4 in to 2-1/4 in |
| ADA Compliant | No |
| Max. Door Height | 84 in |
| Outside Trim Type | Thumbpiece Pull |
| Series | 88 |
| Grade | 1 |
| Overall Width | 3 in |
| Standards | ANSI |
| Features | ANSI Function 03, Key Retracts Latchbolt |
| Visual Indicator Message | No Message |
| Product Type | Mechanical Exit Device Trim |
| ANSI Grade | 1 |
| Hand Orientation | Non-Handed |
| Visual Indicator Location | Not Applicable |
| For Use with Exit Device | Exit Devices |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Door Height - Maximum | 84 in |
| Door Thickness - Minimum | 1 3/4 in |
| Door Thickness - Maximum | 2-1/4 in |
| Compatible Series | 88 |
| Length - Maximum | 14-3/16 in |
| Length - Minimum | Not Applicable |
| Exit Device Style | Key Locks Thumbpiece |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
