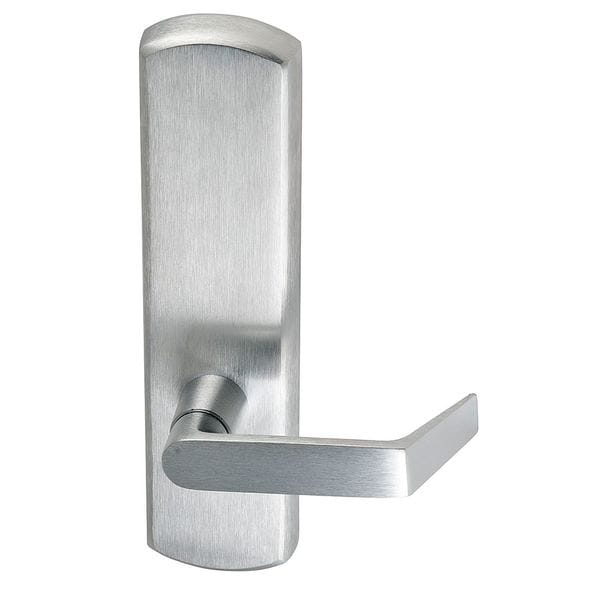

Lever Lockset, Mechanical, Passage, Grd. 1
| Backset | 2 3/4 in |
|---|---|
| Electrical/Mechanical | Mechanical |
| For Use With | Mortise Exit Devices |
| Includes | Hardware |
| Location Type | Commercial |
| Lockset Function | Passage |
| Lockset Grade | 1 |
| Lockset Handle Type | Lever |
| Mortise/Cylindrical | Cylindrical |
| Number of Pins | 0 |
| Required Door Thickness | 1-3/4 in to 2-1/4 in |
| Series | 996L |
| Style | 996L Right Angle |
| Finish | Satin Chrome |
| Standards | ANSI A156.3 |
| Item | Door Lockset |
| Lockset Finish | Satin Chrome |
| Cylinder Core Type | Not Applicable |
| ADA Compliant | No |
| Mortise / Cylindrical | Cylindrical |
| Lockset Performance Strength | Heavy Duty |
| Handle Material | Brass, Bronze, Cast Steel, Wrought |
| Number of Keys | 0 |
| Lockset Fire Rating | Not Rated |
| Ligature Resistant | No |
| Features | Blank Escutcheon |
| Pins | 0 |
| Voltage | Not Applicable |
| Function | Passage |
| Grade | 1 |
| Fire Rated | Not Rated |
| Cylinder | Less Cylinder |
| Application | Commercial |
| Visual Indicator Message | No Message |
| Locking/Unlocking Access - Inside | Not Lockable |
| Ligature-Resistant | Not Ligature-Resistant |
| Door Thickness - Maximum | 2-1/4 in |
| Fire Rating | Not Rated |
| Lockset Type | Mechanical |
| Hand Orientation | Right-Handed |
| Visual Indicator Location | Not Applicable |
| Lockset Style | 996L Right Angle |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| ANSI Grade | 1 |
| Door Thickness - Minimum | 1-3/4 in |
| Includes Core | Core Not Included |
| Includes Hardware | Hardware Included |
| Locking/Unlocking Access - Outside | Not Lockable |
| Knob/Handle Material | Bronze, Brass, Cast Steel |
| Performance Grade | 1 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
