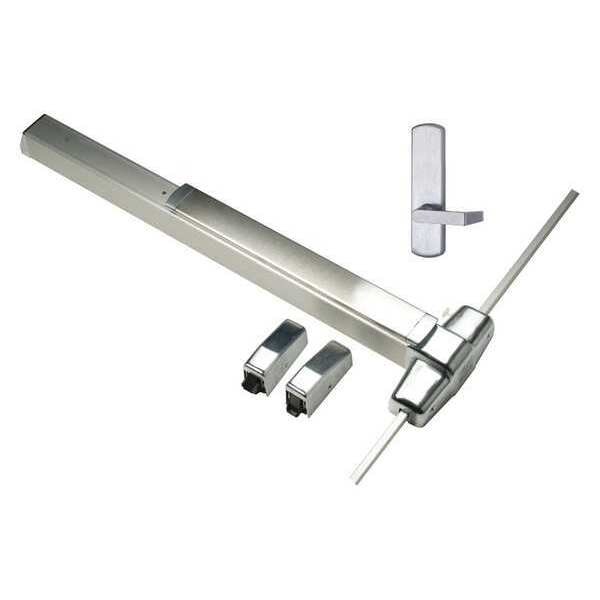

Vertical Rod, 36 in. Door W, Series 98
| Series | 98 |
|---|---|
| Exit Device Type | Surface Vertical Rod |
| For Door Thickness | 1 3/4 in |
| Door Width | 36 in |
| Fits Stile Width | 3-3/4 in |
| Door Handing | Non-Handed |
| Finish | Satin Aluminum |
| Fire Rated | No |
| Grade | 1 |
| Item | Surface Vertical Rod |
| ADA Compliant | Yes |
| Performance | Heavy Duty |
| Standards | ANSI/UL 305, CAN/ULC-S132 |
| Electrical/Mechanical | Mechanical |
| Lockdown Type | Hex Key Dogging |
| Outside Trim Type | Pull |
| Door Height | 84 in |
| Lockset Function | Higher Education, Government Buildings, Hospitals, Classroom |
| UL Fire Rating | UL10C S104, ULC |
| Lockset Type | Mechanical |
| Door Thickness - Maximum | 1-3/4 in |
| Product Type | Exit Device |
| ANSI Grade | 1 |
| Performance Grade | 1 |
| ANSI/BHMA Finish | Clear Anodized, Satin Aluminum |
| Hand Orientation | Non-Handed |
| Door Height - Maximum | 84 in |
| Exit Bar Style | Touchbar |
| Door Width - Maximum | 3 ft |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
