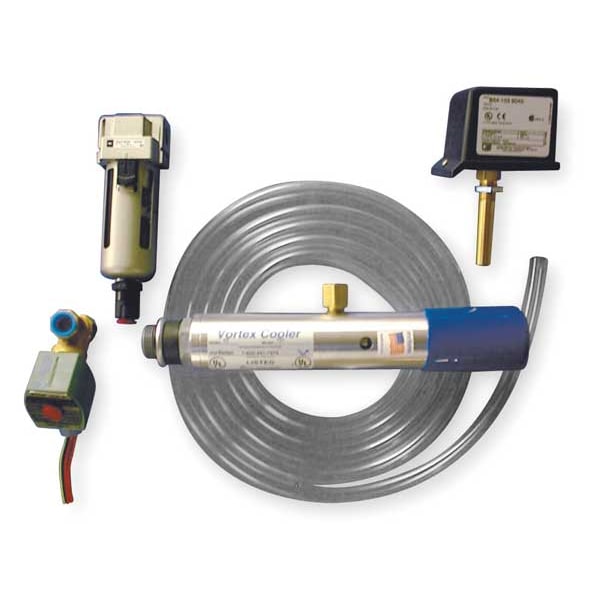

Vortex Enclosure Cooler, 1500 BtuH, BtuH: 1, 500
| Item | Enclosure Cooler |
|---|---|
| Dimension | 10-3/4 in. H x 1-3/4 in. W |
| Height | 10-3/4 in |
| Width | 1-3/4 in |
| NEMA Enclosure Type | NEMA 12 |
| SCFM @ 100 PSI | 25 |
| NEMA Rating | 12 |
| Description/Special Features | Positive Cabinet Air Pressure, Keeps the Enclosure Free of Airbone Contaminants |
| BtuH | 1,500 |
| Depth | 1-3/4 in |
| Extend Outside Enclosure H | 10-3/4" |
| NEMA Type | 12 |
| Extend Inside Enclosure H | 1-5/8" |
| Standards | UL File E187045 |
| Overall Height | 10-3/4 in |
| Housing Material | Aluminum |
| Power Consumption | 440 W |
| Operation Mode | Cooling Only |
| Control Type | Thermostat |
| Operating Temperature - Maximum | 175 deg F |
| Refrigerant Type | Not Applicable |
| Air Consumption | 25 scfm |
| Cooling Method | Air/Air |
| Cooling Capacity - Maximum | 1,500 BtuH |
| NEMA Enclosure Rating | 12 |
| Product Type | Enclosure Cooler |
| Phase | Not Specified |
| Operating Voltage | 120 V |
| Overall Depth | 1-3/4 in |
| Overall Width | 1-3/4 in |
| Package Quantity | 1 |
