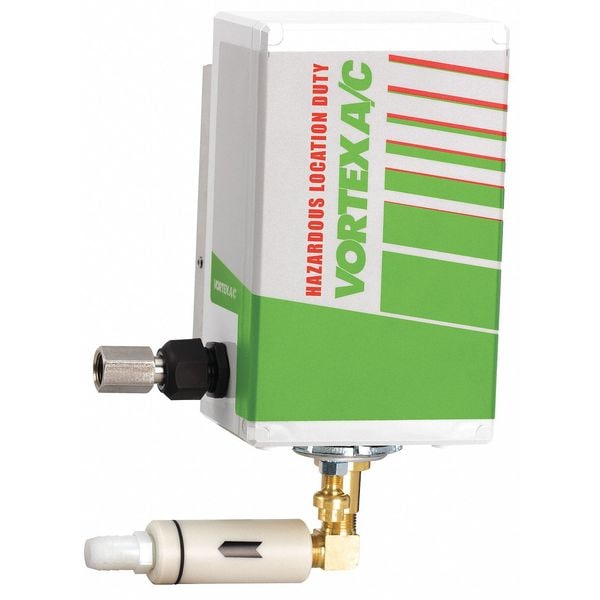

Vortex Enclosure Cooler, 2500 BtuH, 1 NEMA
| Item | Enclosure Cooler |
|---|---|
| Dimension | 8 in. H x 5-3/8 in. W |
| Height | 8 in |
| Width | 5-3/8 in |
| NEMA Enclosure Type | NEMA 1 |
| Description/Special Features | Includes 5 Micron Auto Drain Filter, 3/8" Female NT Air Filter Port Size,Separate Cold Air Muffler, Cold Air Ducting Kit, Cold Air Check Valve, Separate Purge System Required. |
| SCFM @ 100 PSI | 35 |
| NEMA Rating | 1 |
| Depth | 4-3/4 in |
| BtuH | 2,500 |
| Extend Outside Enclosure H | 8" |
| Extend Inside Enclosure H | 1-13/16" |
| NEMA Type | 1 |
| Standards | UL File E356284 |
| Includes | Filter |
| Overall Height | 8 in |
| Operating Temperature - Maximum | 100 deg F |
| Cooling Method | Air/Air |
| Operating Temperature - Minimum | 75 Degrees F |
| Housing Material | Polycarbonate |
| Overall Width | 5.38 in |
| Product Type | A/C Cooler |
| Control Type | Mechanical Thermostat |
| Phase | Not Specified |
| Operation Mode | Cooling Only |
| Power Consumption | 733 W |
| Cooling Capacity - Maximum | 2,500 BtuH |
| Air Consumption | 35 scfm |
| Operating Voltage | Not Applicable |
| NEMA Enclosure Rating | 1 |
| Refrigerant Type | Not Applicable |
| Overall Depth | 4-3/4 in |
| Package Quantity | 1 |
