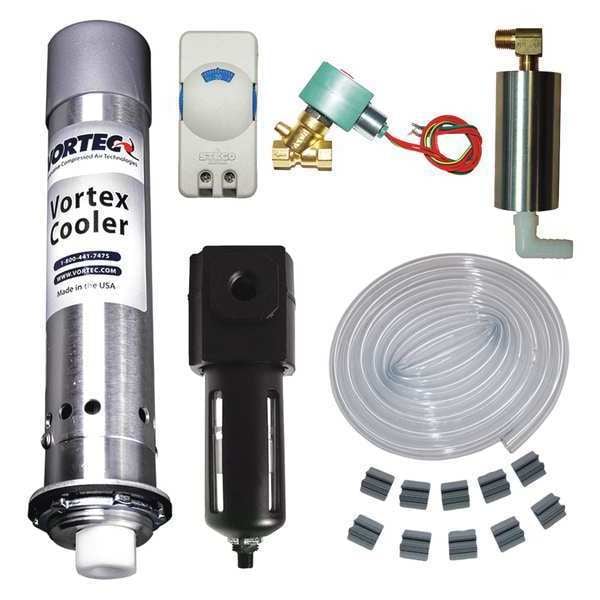

Vortex Enclosure Cooler, 2500 BtuH, 4 NEMA
| Item | Enclosure Cooler |
|---|---|
| Dimension | 9-15/16 in. H x 2 in. W |
| Height | 9-15/16 in |
| Width | 2 in |
| NEMA Enclosure Type | NEMA 4 |
| Extend Outside Enclosure H | 9-15/16" |
| NEMA Type | 4 |
| NEMA Rating | 4 |
| Description/Special Features | Positive Cabinet Air Pressure, Keeps the Enclosure Free of Airbone Contaminants |
| Depth | 2 in |
| BtuH | 2,500 |
| Extend Inside Enclosure H | 2-5/8" |
| SCFM @ 100 PSI | 35 |
| Standards | UL File E187045 |
| Overall Height | 9.94 in |
| Housing Material | Aluminum |
| Operating Temperature - Maximum | 175 deg F |
| Operating Voltage | 120 V |
| Overall Depth | 2 in |
| Phase | Not Specified |
| Control Type | Thermostat |
| Overall Width | 2 in |
| NEMA Enclosure Rating | 4 |
| Cooling Method | Air/Air |
| Power Consumption | 733 W |
| Air Consumption | 35 scfm |
| Refrigerant Type | Not Applicable |
| Cooling Capacity - Maximum | 2,500 BtuH |
| Operation Mode | Cooling Only |
| Product Type | Enclosure Cooler |
| Package Quantity | 1 |
