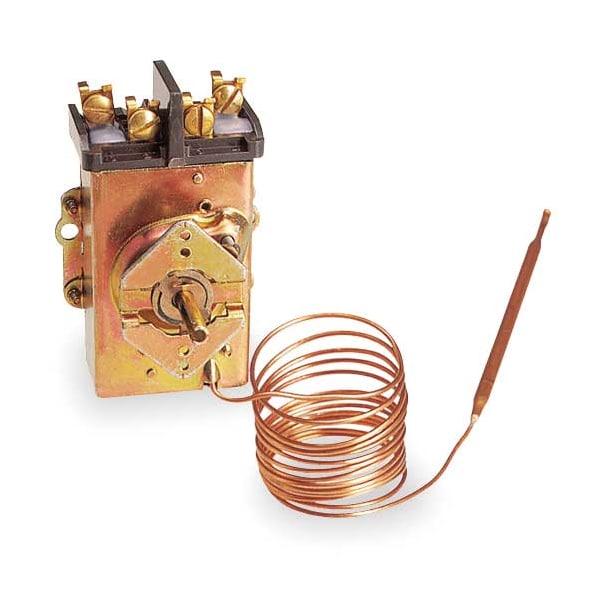

Bulb Thermostat, Open on Rise, 100 Degrees to 550 Degrees F, DPST, 120 to 480V AC
| Switch Action | Open on Rise |
|---|---|
| Voltage | 120 to 480V AC |
| Sensor Type | Copper Bulb |
| Thermostat Control Range | 100 to 550 deg F |
| Switch Type | DPST |
| Width | 2-1/4 in |
| Height | 3-1/8 in |
| Contact Rating Resistive @ 277V | 30 A |
| Item | Bulb Thermostat |
| Thermostat Voltage | 120 to 480 V AC |
| Standards | UL Recognized Component E12103 |
| Remote Sensing Capability | Yes |
| Full Load Amps @ 120VAC | 15 A |
| Capillary Length | 84 in |
| Thermostat Item | Line Voltage Mechanical Thermostat |
| Control Range | 100 to 550 deg F |
| Contact Rating Resistive @ 120V | 30 A |
| Inductive Amps @ 208V | 30 A |
| Number of Switches | 1 |
| Full Load Amps @ 240VAC | 30 A |
| Remote Sensing Bulb Included | Yes |
| Thermostat Switch Type | DPST |
| Thermostat Heating/Cooling | Heating |
| Sensing Bulb Dia. | 1/4 in |
| Enclosure Type | None |
| Sensing Bulb Length | 7-5/16 in |
| Contact Rating Resistive @ 240V | 30 A |
| Mounting Type | Unit Mount |
| Includes | Thermowells |
| Thermostat Programmable | No |
| Thermostat Type | Bulb Thermostat |
| For Use With | Heating Applications |
| Mounting | Unit Mount |
| Application | Heat Only |
| Type | Remote Bulb Temperature Control |
| Features | Direct-Acting with Positive Off Position, Does Not Include Cover or Control Knob |
| Enclosure Material | Metal |
| Compatible System Type | Industrial Processes and Equipment, Tanks and Vessels, Vulcan Heater Assemblies |
| Enclosure NEMA Rating | Not Rated |
| Sensor Location | Remote |
| Bulb Length | 7-5/16 in |
| Contact Type | Snap Action |
| Remote Control Functions | On/Off and Temperature Control |
| Minimum Control Temperature | 100 deg F |
| Contact Rating | 120 to 480V AC |
| Electrical Connection Type | Hardwired |
| Differential Type | Adjustable |
| Amperage | 30 A |
| Maximum Control Temperature | 550 deg F |
| Number of Poles | 2 |
| Minimum Operating Temperature | 100 deg F |
| Temperature Control Range | 100 to 550 deg F |
| Overall Height | 3-1/8 in |
| Mounting Direction | Vertical |
| Sensor Size | 7-5/16 in L, 1/4 in Dia |
| Operating Temperature Range | 100 to 550 deg F |
| Maximum Operating Temperature | 550 deg F |
| Overall Width | 2-1/4 in |
| Temperature Scale | Fahrenheit, Celsius |
| Bulb Diameter | 1/4 in |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
