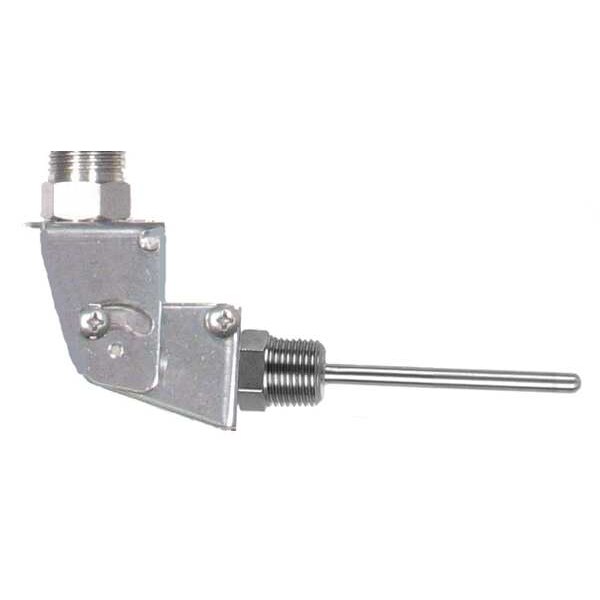

Sonda de temperatura por inmersión, RTD, 4 pulgadas de largo.
| Item | Immersion Temperature Probe |
|---|---|
| Probe Length | 4 in |
| For Use With | Wahl Digi-Stem Meter |
| Temperature Measuring Element | RTD |
| Process Connection | 1/2 in NPT |
| Manufacturers Warranty Length | 2 yr |
| Probe Wire Length | 3 in |
| Calibration Certificate | NIST |
| Includes | All Angle, NPT Process Connection |
| Probe Material | 317 Stainless Steel |
| Accuracy | +/-0.15 Degrees C |
| Probe Dia. | 1/4 in |
| Use | Air, Liquids |
| Temp. Range (F) | -76 Degrees to 400 Degrees |
| Probe Temp. Measuring Element | 100 ohms RTD |
| Probe Connector | Bare Wire |
| Primary Measuring Element | RTD |
| Probe Connection Type | Bare Wire |
| Probe Contact Material | 316 Stainless Steel |
| Temp. Range (C) | -60 to 204 deg |
| Process Mounting | 1/2 in NPT |
| Minimum Temperature F | -76 deg F |
| Maximum Temperature F | 400 deg F |
| Sensor Type | RTD |
| Maximum Temperature C | 204 deg C |
| Includes Thermowell | No |
| Cable Length | 3 in |
| Includes Signal Converter | No |
| Probe Size | 1/4 in x 4 in |
| For Liquids and Gels | Yes |
| For Gases | Yes |
| For Solids | No |
| Manufacturer Warranty Length | 2 yr |
| For Application | Food and Beverage, Pharmaceutical, Process |
| Connector Type | Bare Wire |
| Probe Diameter | 1/4 in |
| Fitting Type | 1/2 in NPT |
| For Air | No |
| Minimum Temperature C | -60 deg C |
| Temperature Range | -76 Degrees to 400 Degrees F/-60 Degrees to 204 Degrees C |
| Number of Wires | 4-Wire |
| Probe Sheath Material | 316L Stainless Steel |
| Response Time | 2 sec |
| Resistance | 100 ohms |
| Probe Bend | Adjustable |
| RTD Type | 4-Wire 100 ohm |
| Maximum Temperature °C | 204 deg C |
| Minimum Temperature °F | -76 deg F |
| Maximum Temperature °F | 400 deg F |
| Minimum Temperature °C | -60 deg C |
| Package Quantity | 1 |
