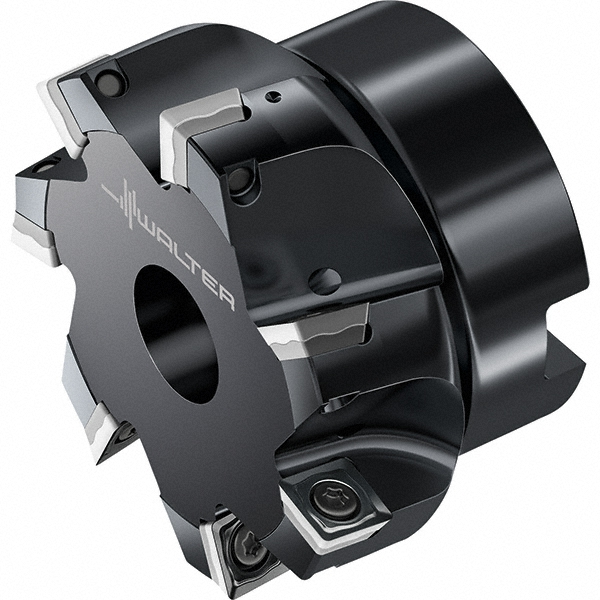

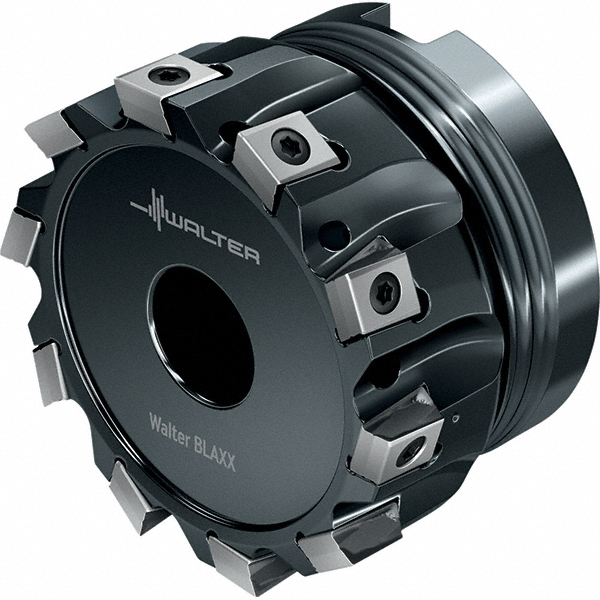

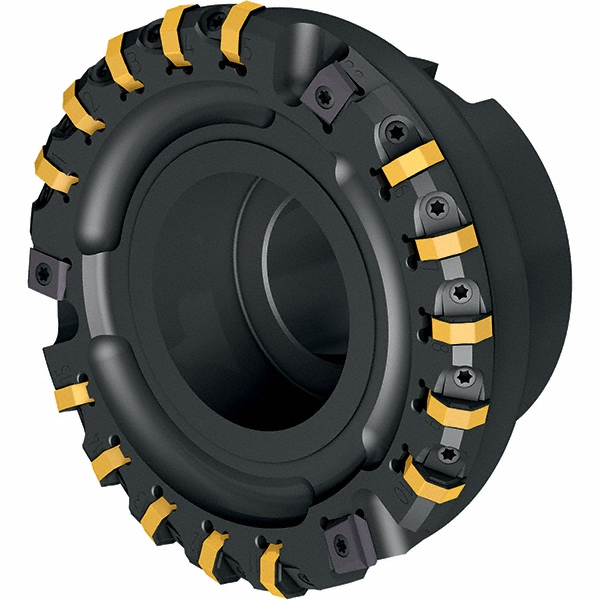

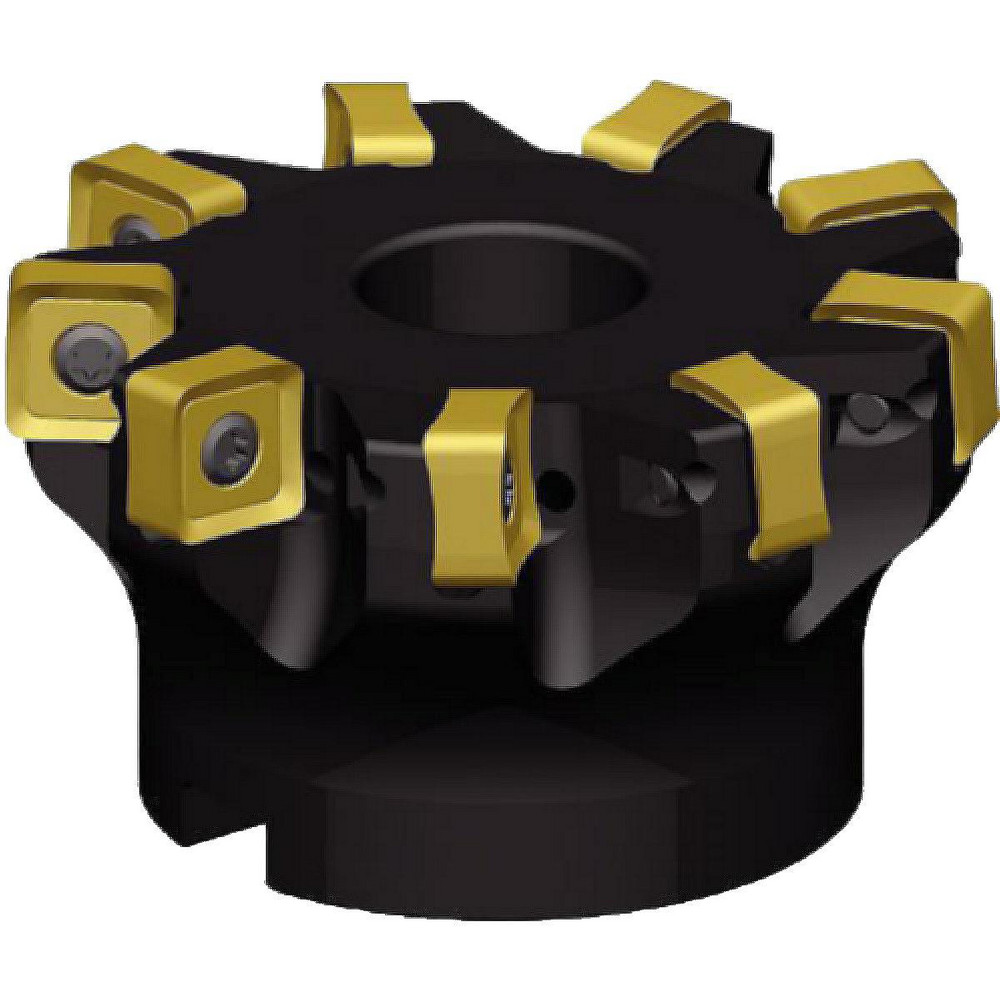

Takes 15 Inserts, 90° Lead Angle, 50.01mm High, OHNF050408. Insert Style, Through Coolant, Series M2025

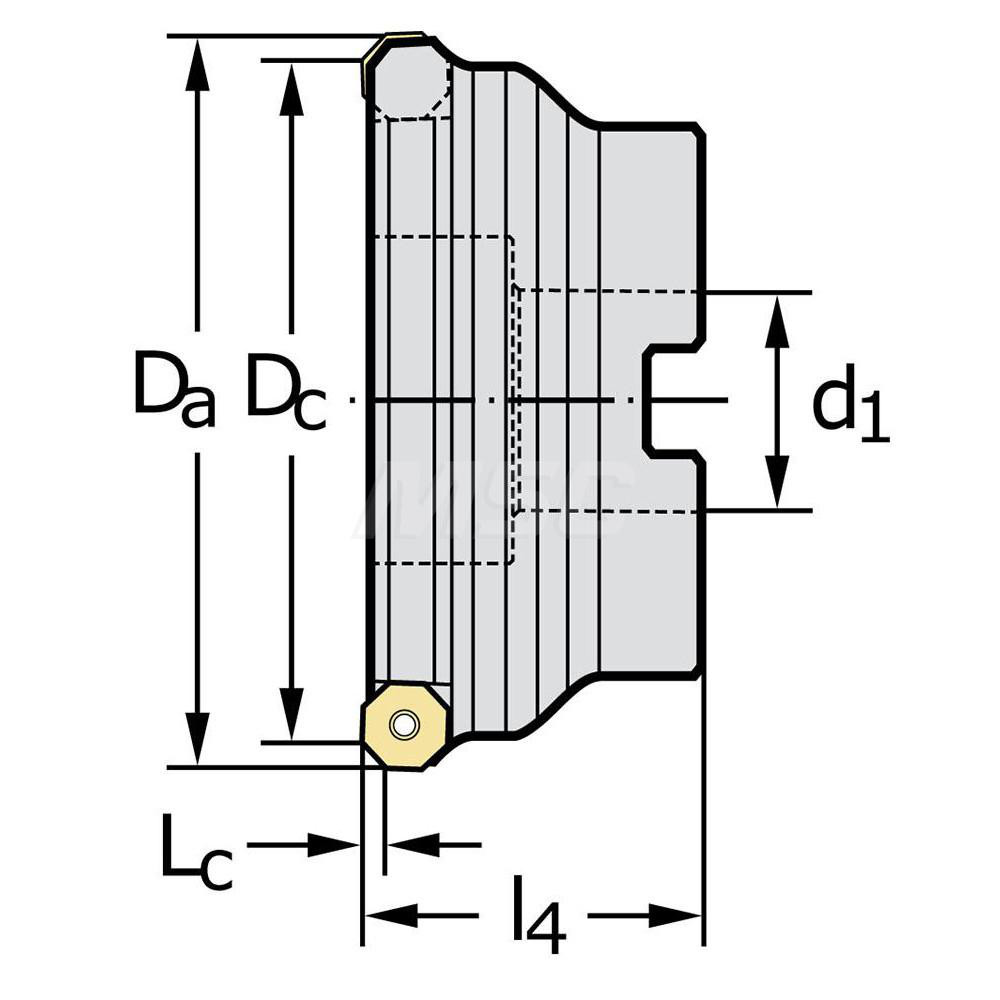

| Maximum Cutting Diameter (Decimal Inch) | 3.9370 |
|---|---|
| Maximum Cutting Diameter (mm) | 100.00 |
| Maximum Depth of Cut (mm) | 8.41 |
| Maximum Depth of Cut (Decimal Inch) | 0.3310 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2600 |
| Compatible Insert Size Code | OHNF050408. |
| Cutter Style | M2025 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 90 |
| Series | M2025 |
| Overall Height (Decimal Inch) | 1.9690 |
| Tool Application | Facing |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Secondary Workpiece Material Code | O |
| Standards | ISO |
| Number of Adjustable Pockets | 3 |
| UNSPSC Code | 27112803 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 15 |
| Number Of Flutes | 15 |
| Country of Origin | China |
| undefined | undefined |
| MSC Number | MSC# 47090543 |
